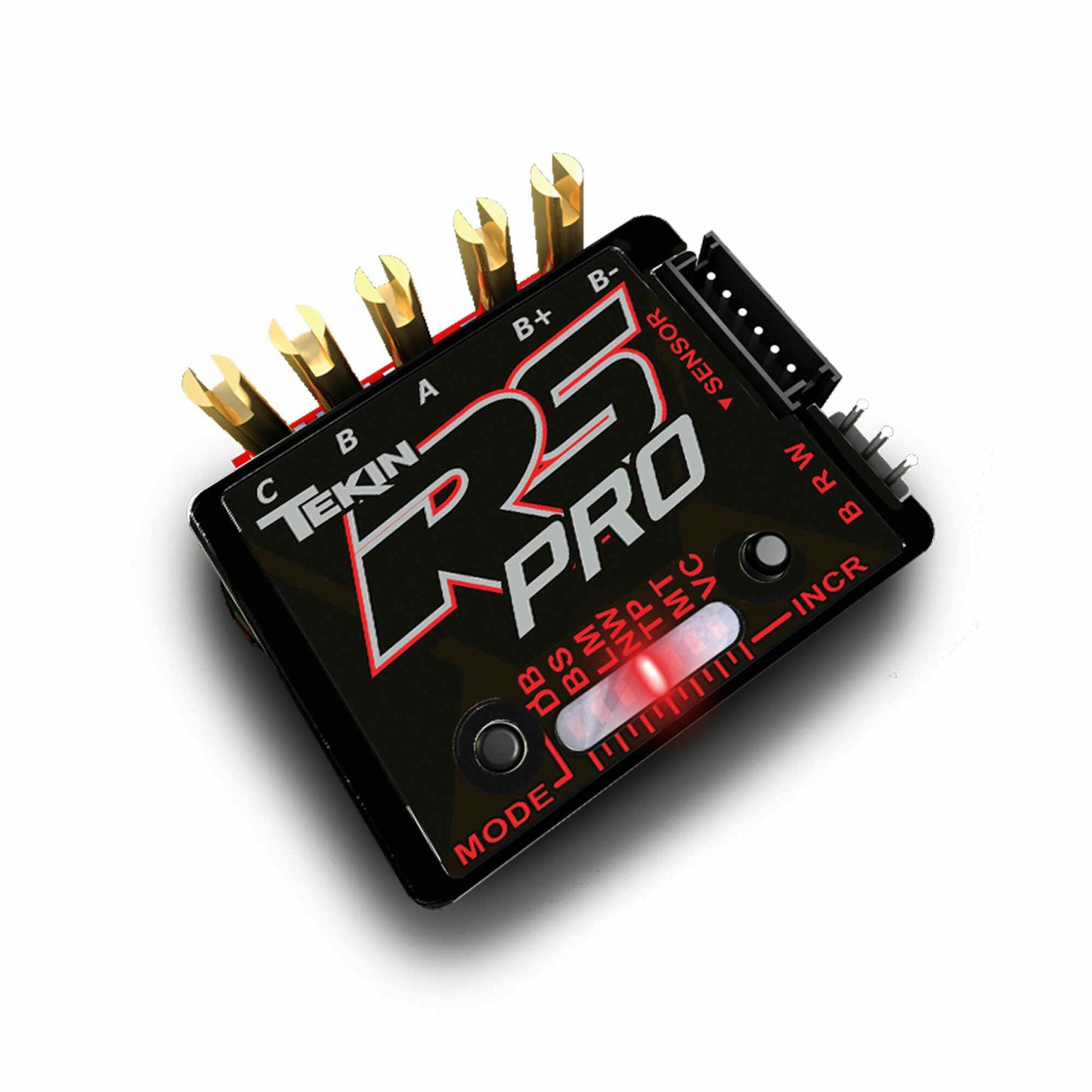

RS Pro Black Edition Sensored/Sensorless Brushless Motor ESC TEKTT1160

This is a Tekin TEKTT1160 RS PRO Black Edition Brushless Motor Sensored/Sensorless ESC.

Key Features

ULR: Ultra Low Resistance Design

Specifically Designed for Spec and Stock Racing

QuickTune™ One Touch Programming

Adjustable Throttle and Brake Frequencies *

High Voltage Programmable BEC *

HotWire™ Programming Port *

Data Logging Capability *

Sensor Checker

On-Board Temperature Indicator

ESC Self Diagnostics with Error Codes

Fully Proportional Forward/Brake/Reverse

Brushless and Brushed Motor Drive

Sensored or Sensorless Operation

LiPo Safe with Custom Voltage Cutoffs

Sensor Plug for Precise Commutation

Lightweight Chassis Design

HDAC: High Density Copper PCB's

Ultra-smooth and Precise Throttle and Braking Control

*requires HotWire sold separately

Overview

The RS PRO is back! This RS PRO Black Edition utilizes both hardware and software advances recently developed for our latest ESC lineup. With its industry-leading Ultra Low Resistance you can be sure that your motor is getting all the power you can give it. More power, smooth control and reliability you can count on: the RS PRO Black Edition is engineered for performance. Capabilities such as Data Logging and HotWire 3.0 Bluetooth Connectivity allow you fine tune your system and gain an advantage over the competition.

The RS PRO Black Edition was specifically designed for 1S-2S Spec Classes and Drag Racing to take full advantage of the ULR circuit design. ULR FlexWire is included with every Black Edition ESC. Pair the RS PROs with a SPEC-R motor for the ultimate Ultra Low Resistance system.

For 1/10 scale 2WD/4WD Buggy and Stadium Truck and Modified Touring Car we recommend the RSX Modified ESC as these setups tend to run at higher temperatures. The billet housing and fan shroud on the RSX provide sufficient cooling.

ON BOARD Quicktune PROGRAMMABLE FEATURES:

DB - Drag Brake (13 steps)

BS - Brake / Reverse Strength (13 steps)

LM - Torque Limiter (7 steps)

NW - Neutral Width (13 steps)

TP - Timing Profiles 5 Presets - 2 Custom

MT - Motor Type

Brushless Modes: FWD Only / FWD-REV / FWD-REV Delay / FWD-REV Delay REV Motor Direction

Brushed Modes: FWD Only / FWD-REV / FWD-REV Delay

VC - Voltage Cutoffs: 2S, 3S and Custom

Extensive Tuning via Tekin HotWire (sold separately)

Specifications

Controls: Forward/Brake/Reverse

Input Voltage

RS Pro: 1-3S LiPo / 4-9S NiMH-NiCD*

RS Pro 1-S: 1S LiPo ONLY / 4S NiMH-NiCD

Motor Limit Brushless Mode 2S: 36mm Can - 2-Pole

Motor Limit Brushless Mode 3S: 36mm Can - 2-Pole

Motor Limit Brushed 2S: 36mm Can - 540 & 550

Motor Limit Brushed 3S: 36mm Can - 540 & 550

Amperage: 480Amps per phase**

ON Resistance: .000096ohm**

BEC: 6.0 / 7.4V @ 5.5amps

Weight: 1.23oz / 35g

Dimensions: 1.0 x 1.3 x .68in / 24.5 x 33 x 17.25mm

*1S LiPo Operation requires a separate booster or receiver battery

**per manufacturer specs

Programmable: Yes
