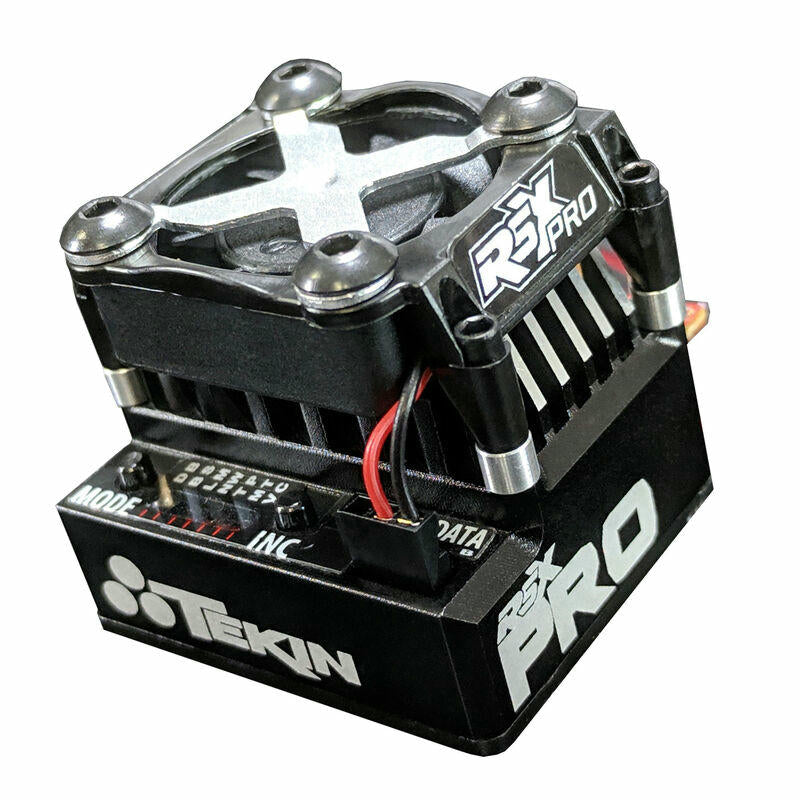

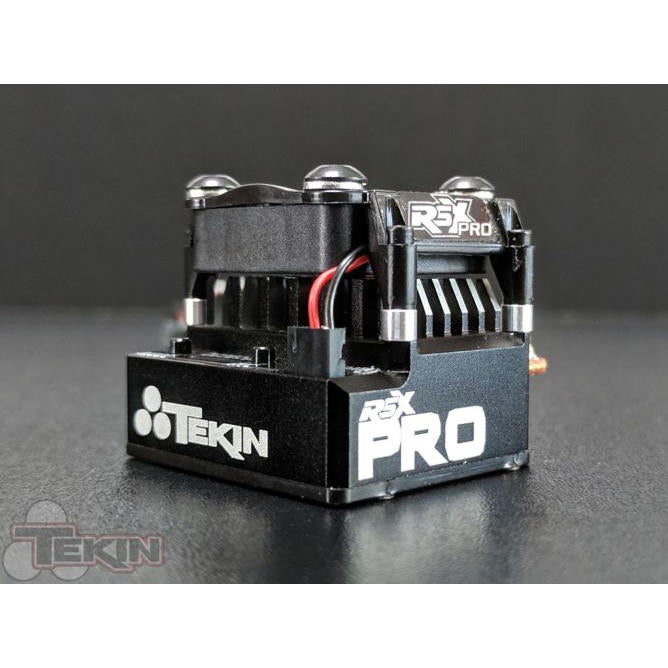

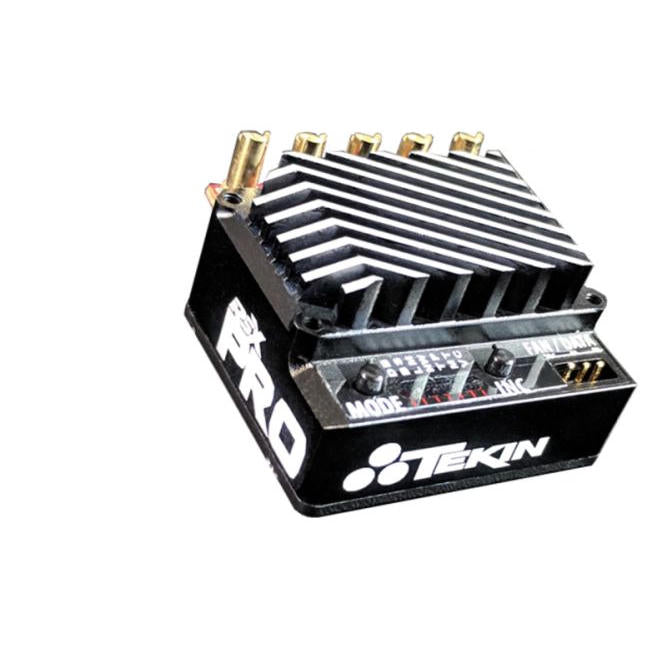

This is a Tekin TEKTT1159 RSXpro Mod Sensored Sensorless D2 Brushless Motor ESC.

Product Details

Overview

The RSX PRO is Tekin's premiere modified racing Electronic Speed Control. Using only the best available components and materials, this ESC is performance defined. Bred for 1:10th scale modified competition, the RSX PRO gives you maximum power with precise control and reliability. With a highly efficient aluminum heat sink housing and an entire array of adjustable features, you have the ability to fine-tune the RSX PRO's massive power for the win.

Included with the RSX PRO is a detachable fan shroud system for maximum cooling in extreme racing conditions. Data Logging, a High Voltage HD Internal BEC and optional 3rd Channel Drag Brake Adjustment come standard as well as access to Team Driver setups. Take your racing program to the next level with the Tekin RSX PRO.

Features

Billet 6061-T6 Aluminum Heat Sink Housing

FET Package

HD Easy Solder Posts

Optional Shroud and High RPM Cooling Fan

3rd Channel Input for On-The-Fly Drag Brake Adjustments <>

QuickTune™ One Touch Programming

Adjustable Torque Control *

Adjustable Throttle and Brake Frequencies *

HD High Voltage Programmable BEC *

HotWire™ Programming Port *

On-the-fly Drag Brake Adjustment

Data Logging Capability *

Sensor Checker

On-Board Temperature Indicator

ESC Self Diagnostics with Error Codes

Fully Proportional Forward/Brake/Reverse

Brushless and Brushed Motor Drive

Sensored or Sensorless Operation

LiPo Safe with Custom Voltage Cutoffs

Sensor Plug for Precise Commutation

HDAC: High Density Copper PCB's

Ultra-smooth and Precise Throttle and Braking Control

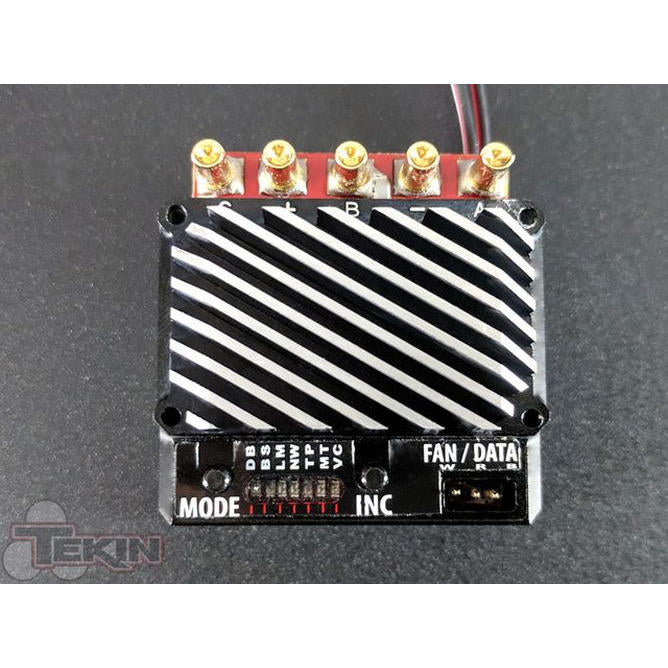

On Board QuickTune™ Programmable Features

DB - Drag Brake (13 steps)

BS - Brake Strength (13 steps)

LM - Torque Limiter (7 steps)

NW - Neutral Width (13 steps)

TP - Timing Profiles 5 Preset - 2 Custom*

MT - Motor Type

Brushless Modes - FWD Only / FWD-REV / FWD-REV Delay / FWD-REV

Delay REV Motor Direction

Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay

VC - Voltage Cutoff : 2S, 3S, Custom*

Product Specifications

Auto Cutoff      LiPo Safe with Custom Voltage Cutoffs

BEC Voltage     6.0v / 7.4v @ 5.5amps

Brakes      Yes

Forward  Yes

Input Voltage  2S-3S LiPo / 4-12S NiMH-NiCD

Low-Voltage Cutoff Programmable        Yes

Maximum Burst Current 210amps per phase

Product Height        0.82 (21mm)

Product Length        1.21 (31.2mm)

Product Weight       1.4oz / 40g

Product Width          1.43 (37.2mm)

Programmable        Yes

Reverse    Yes
