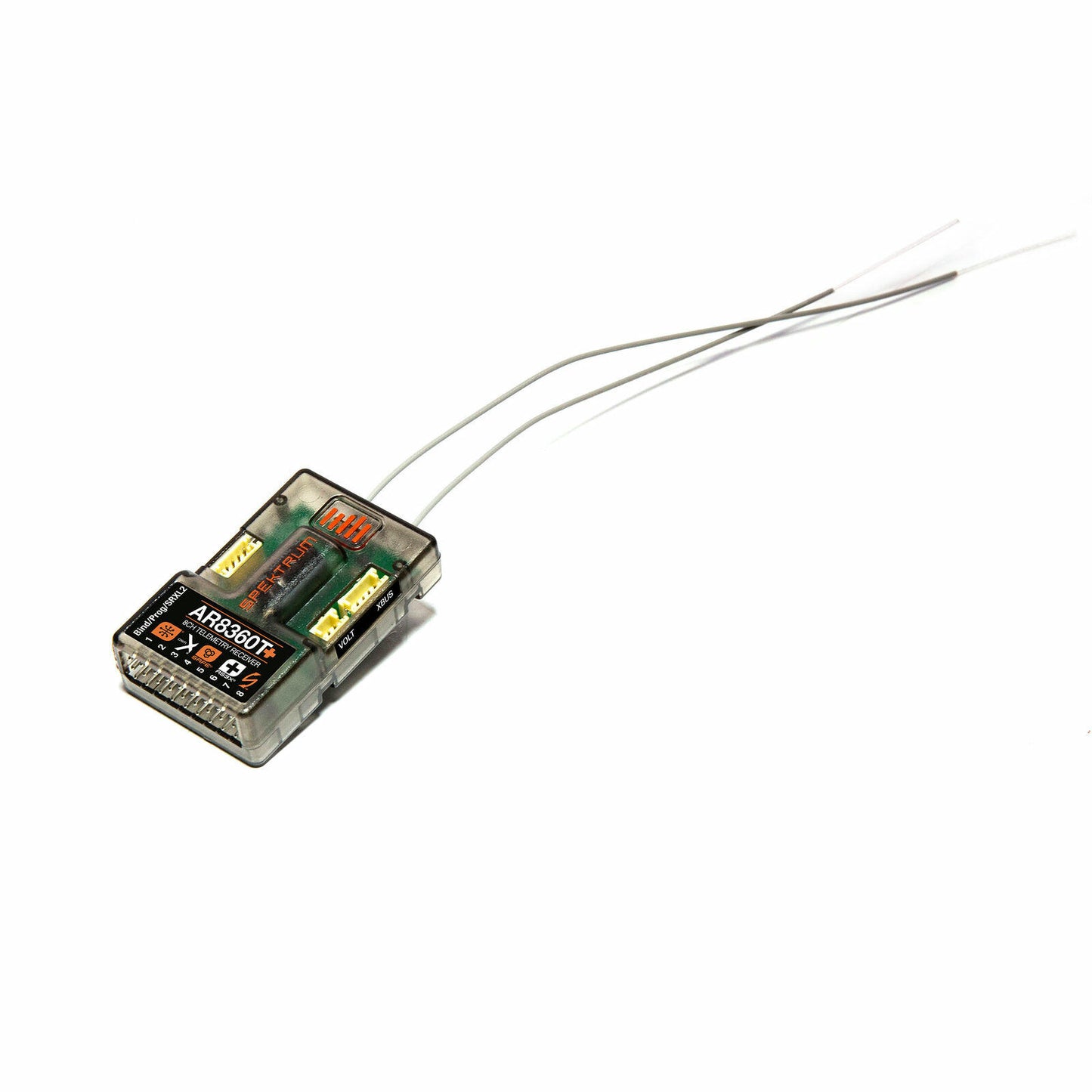

Spectrum AR8360T+ DSMX/DSM2 8-Channel AS3X+ & SAFE Telemetry Receiver SPM-1033

The AR8360T+ features a full-range telemetry and integrated barometer to provide altitude and vario telemetry data without additional purchase. Included XBUS and temperature ports can be used to add additional telemetry sensors available separately. It also features an SRXL2 port for an SRXL2 Remote Receiver (SPM9747 or SPM4651T), available separately, to add additional RF path redundancy. An SRXL2/Bind/Program/Batt servo header is available to connect Smart devices, program and update the receiver, bind with a traditional bind plug, or connect a battery. The AR8360T+ also features a bind button for easy binding with no plugs necessary and offers both SmartSafe™ technology and Hold Last, as well as preset failsafe types set through forward programming.

Please Note:

The DX7S and DX8 Gen 1 Spektrum Transmitters will not display Altitude or Variometer telemetry with the AR8360T receiver.

These transmitters do not support Forward Programming devices: DX6i, DX6G2 (EU Version), DX7, DX7S, DX7SE, DX7G2 (EU Version), DX8, Non-computer transmitters.

Using this receiver in turbine powered aircraft models is not recommended.

Spektrum AR8360T+ DSMX 8-Channel AS3X+ & SAFE Telemetry Receiver Features

Bind button allows for easy binding and eliminates the use of bind plug

Two external antennas will ensure secure RF coverage from all angles of the aircraft

Additional RF path redundancy with an additional SRXL2 Remote Receiver (sold separately)

End pin output pins for easy and compact installation

AS3X+ and SAFE set up through forward programming directly from your Spektrum transmitter*

Ready to use with Spektrum Smart ESCs for one-wire telemetry data without the need of modules, links and wires

Forward Programming capable for setting individual failsafe parameters per channel and more

NEXT GENERATION IN FLIGHT STABILIZATION

NEXT GENERATION IN FLIGHT STABILIZATION

The all-new AS3X+ features a vastly improved stabilization algorithm that has been rigorously tested by experts throughout the hobby. The system is even easier to tune and can be easily optimized for any type of aircraft you fly. Never again spend hours tuning and tweaking until you get your aircraft locked in. We've been able to set up most aircraft in less than 5 minutes including the first flight tuning.

Key AS3X+ improvements include:

Stop Lock and Release Rate parameters

Heading Hold improvements

Improved gryo filtering

Canard and Thrust Vectoring Support

SMART TRANSMITTER FILES SUPPORT

SMART TRANSMITTER MODEL FILES SUPPORT

Smart Transmitter Model Files is a new feature on the AR8360T+ receiver that makes transmitter programming the easiest has ever been. It consists of a set of transmitter configuration parameters that are stored within the receiver's model file. When binding to a receiver containing one of these model files, the user will be prompted to download said model file and overwrite the currently selected transmitter model with the one stored on the receiver. This will provide the user with an easy and simple way to acquire a transmitter model setup for their BNF model without the need to set it up themselves or search for and download the corresponding model online.

Note: Supported transmitters currently are the iX20, iX14, and NX transmitters with the latest firmware updates.

FORWARD PROGRAMMING

AS3X+ FORWARD PROGRAMMING

You can configure the AR8360T+ receiver wirelessly, directly from any compatible Spektrum™ transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments.

SAFE® TECHNOLOGY

SAFE® TECHNOLOGY

SAFE® (Sensor Assisted Flight Envelope) technology flight modes help pilots avoid over-controlling their models. SAFE uses AS3X+ to deliver normal flight performance, but with limited bank and pitch angles to prevent the aircraft from getting in extreme attitudes.

SMART TELEMETRY

SMART TELEMETRY

To enjoy the full benefits of Smart™ technology, use the AR8360T+ receiver with a Smart ESC and telemetry capable Spektrum DSMX® transmitter. Vital telemetry data such as current, voltage, temperature and RPM is sent directly to your transmitter in real time. For more information on Smart Technology please visit our Spektrum Smart Technology page.

INTEGRATED BAROMETER

INTEGRATED BAROMETER

The Spektrum™ AR8360T+ receiver features an integrated barometer (built-in pressure sensor) to provide altitude and vario telemetry data without the need to purchase additional sensor modules.

SAFE® PANIC RECOVERY

SAFE® PANIC RECOVERY

Sometimes called a bailout mode, Panic is a SAFE Stabilization mode that can return an airplane to level flight from any attitude. It is usually assigned to a momentary button.

Specifications

Antenna Length 6.1 (155 mm)

Application Airplane, Sailplane

Band 2.4GHz

Bind Method Bind Button

Channels 8

Failsafe Yes

Forward Programming Yes

Input Voltage 3.5 - 9V

Integrated Variometer Yes

Modulation DSMX

Product Application Air, Sailplanes

Product Height 0.59 (15 mm)

Product Length 1.92 (49 mm)

Product Weight 0.56oz (16g)

Product Width 1.2 (30 mm)

Range Full

Remote Receiver Ports 1

Resolution 2048

Serial Out SRXL2

Technology  AS3X+, SAFE

Telemetry Yes

Telemetry Range Full
