RPM Heavy Duty Black Front Right Suspension Arms Arrma Outcast/Kraton 8S 81562

UNBEATABLE DURABILITY FOR MONSTER TRUCKS

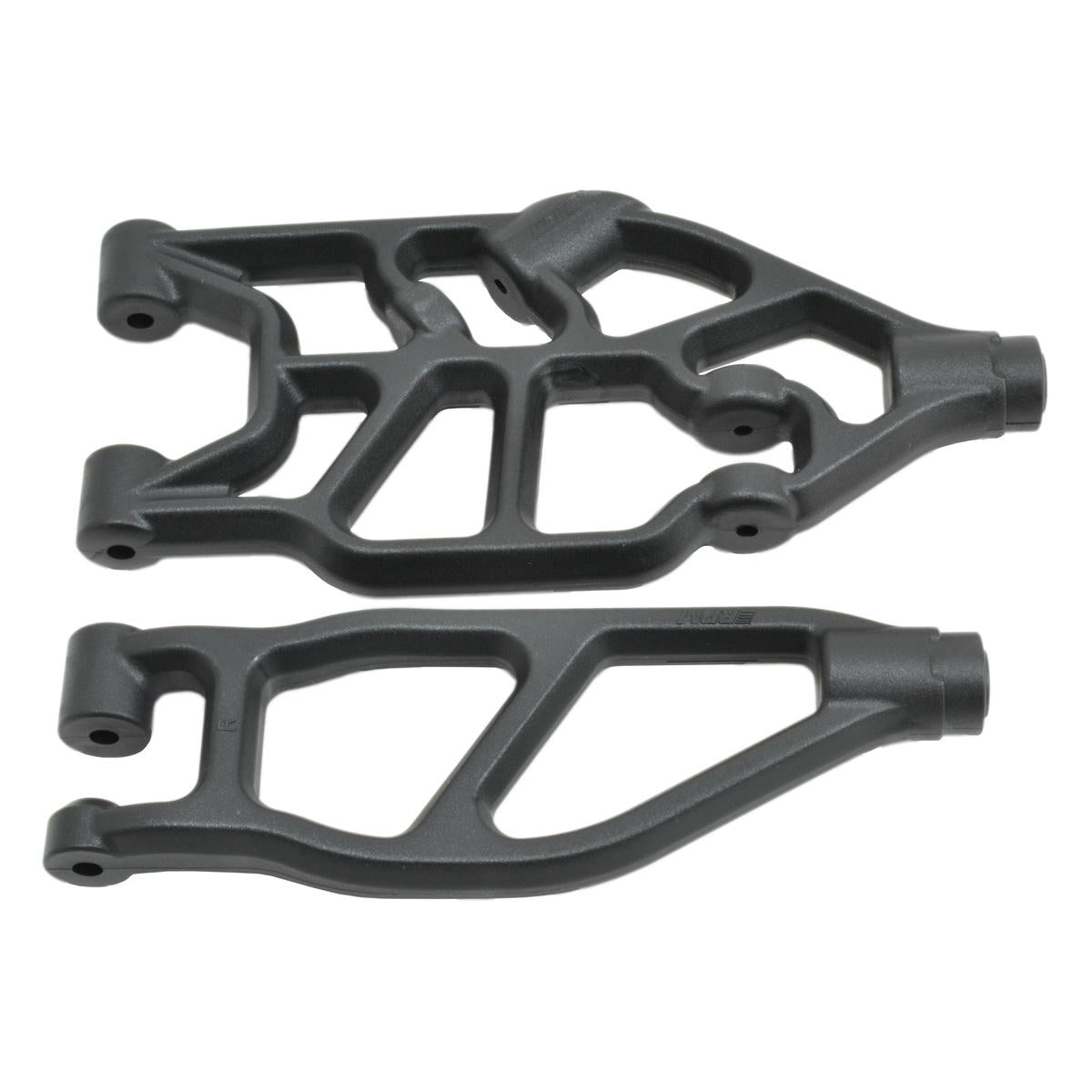

The RPM RC Products RPM81562 offers a Front Right Upper & Lower Suspension Arm Set specifically designed for the Kraton 8S and Outcast 8S. Crafted to withstand the rigorous demands of these 26 lbs. (12kg.) powerhouse vehicles, these A-arms promise a level of strength and performance that serious hobbyists can rely on.

TRIPLE BEAM CONSTRUCTION FOR IMPACT RESILIENCE

The lower A-arms feature a unique triple beam design that effectively disperses impact energy across all three beams. Each beam boasts a substantial cross-section, measuring 5/8 inches (15.8mm) in height and 3/8 inches (9.5mm) in width, minimizing unwanted flex during standard suspension movement while ensuring outstanding absorption during tough landings.

DESIGNED FOR MAXIMUM STRENGTH

The upper A-arms incorporate a dual beam structure, with each beam measuring 1/2 inch (12.7mm) in height and 3/8 inches (9.5mm) in width. This innovative design eliminates molding stresses from the tube shape over the hinge pin while reinforcing the leading edge hinge pin support, significantly enhancing strength and durability.

EASY INSTALLATION AND ACCESS

Each A-arm comes equipped with fingernail slots to facilitate straightforward accessibility for removing the aluminum support ring (not included) found at the pivot ball. The arms are molded from an exclusive blend of ultra-durable materials, ensuring you make an excellent choice with RPM.

COMPLETE YOUR SUSPENSION UPGRADE

Tech notes indicate that the RPM suspension arms for the ARRMA Kraton 8S and Outcast 8S are packaged as one upper and one lower arm per kit. For full front-end assembly, you will need one left arm (#81522) and one right arm (#81562). RPM A-arms replace the stock upper A-arms of ARRMA #ARA330561 and the lower A-arms of stock #ARA330589.

INSTALLATION TIPS FOR OPTIMAL PERFORMANCE

Similar to the original A-arms, RPM's versions come without threads. If you encounter difficulty threading the pivot ball hole, RPM suggests thread tapping the hole for 3-4 threads but cautions against extending beyond this to maintain the thread-locking capability of the materials.

Experience the thrill of off-road adventures as you enhance your ARRMA monster truck with these robust suspension arms.
