RPM Heavy Duty Black Front Left Suspension Arms Arrma Outcast/Kraton 8S RPM81522

RUGGED DESIGN FOR HIGH-PERFORMANCE TRUCKS

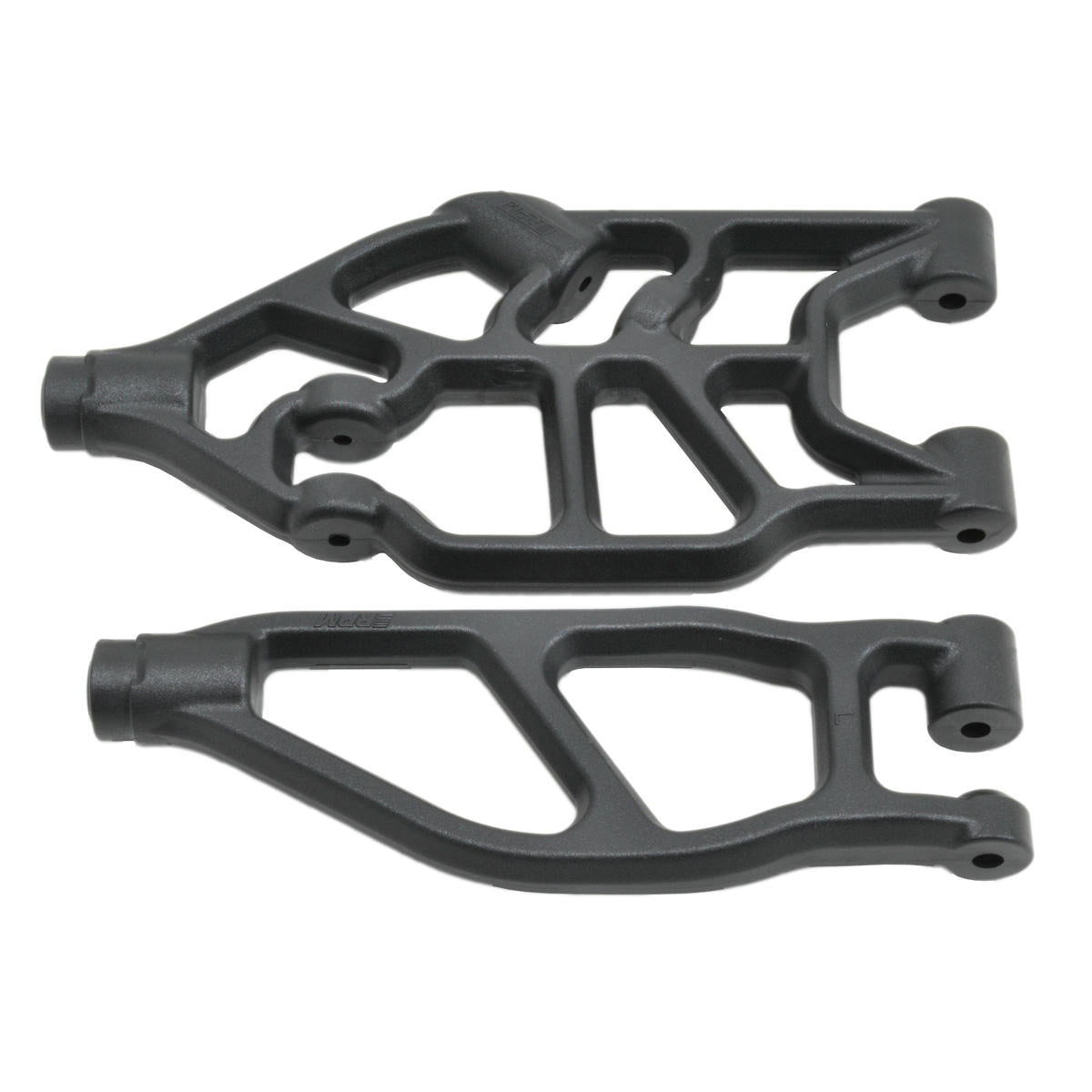

Introducing the RPM RC Products RPM81522 Front Left Upper and Lower Suspension Arm Set, tailored specifically for the Kraton 8S and Outcast 8S Monster Trucks. These impossibly formidable vehicles, weighing 26 lbs. (12 kg), are designed to soar and conquer terrains, and the RPM A-arms are crafted to withstand the challenges they face.

SUPERIOR IMPACT RESISTANCE

The innovative triple beam construction of RPM's front lower A-arms efficiently distributes impact energy across all three beams. With robust dimensions of 5/8 (15.8mm) tall and 3/8 (9.5mm) wide, these A-arms significantly diminish unwanted flex during standard suspension movement while adeptly absorbing impacts, thereby enhancing landing responsiveness and crash resilience.

ENGINEERED FOR STRENGTH AND DURABILITY

RPM's front upper A-arms incorporate a dual beam design, featuring substantial beams measuring 1/2 (12.7mm) tall and 3/8 (9.5mm) wide. This design eliminates the tube shape over the hinge pin to reduce inherent molding stresses, thereby augmenting hinge pin support strength and overall durability.

EASY INSTALLATION AND REMOVAL

Both the upper and lower A-arms are molded with convenient fingernail slots that facilitate effortless removal of the aluminum support ring at the pivot ball (support ring not included). Crafted in the USA from a specialized blend of ultra-durable materials, RPM A-arms are the optimum choice for enhancement.

COMPATIBILITY AND INSTALLATION REQUIREMENTS

RPM A-arms for the ARRMA Kraton 8S and Outcast 8S are available as a single upper and single lower component per kit. To complete the front suspension for one vehicle, be sure to obtain one left (#81522) and one right (#81562). The RPM A-arms directly replace the upper A-arms from stock ARRMA #ARA330561 and lower A-arms from stock #ARA330589.

INSTALLATION NOTES

It is important to note that RPM Kraton 8S A-arms, like the factory components, are provided without threads. If threading the pivot ball hole proves challenging, RPM recommends using a tap (not included) to create 3-4 threads, without continuing further to maintain thread-locking capability.

Experience the thrill of intense gameplay with RPM components, designed for those who demand durability and performance in the most challenging environments.
