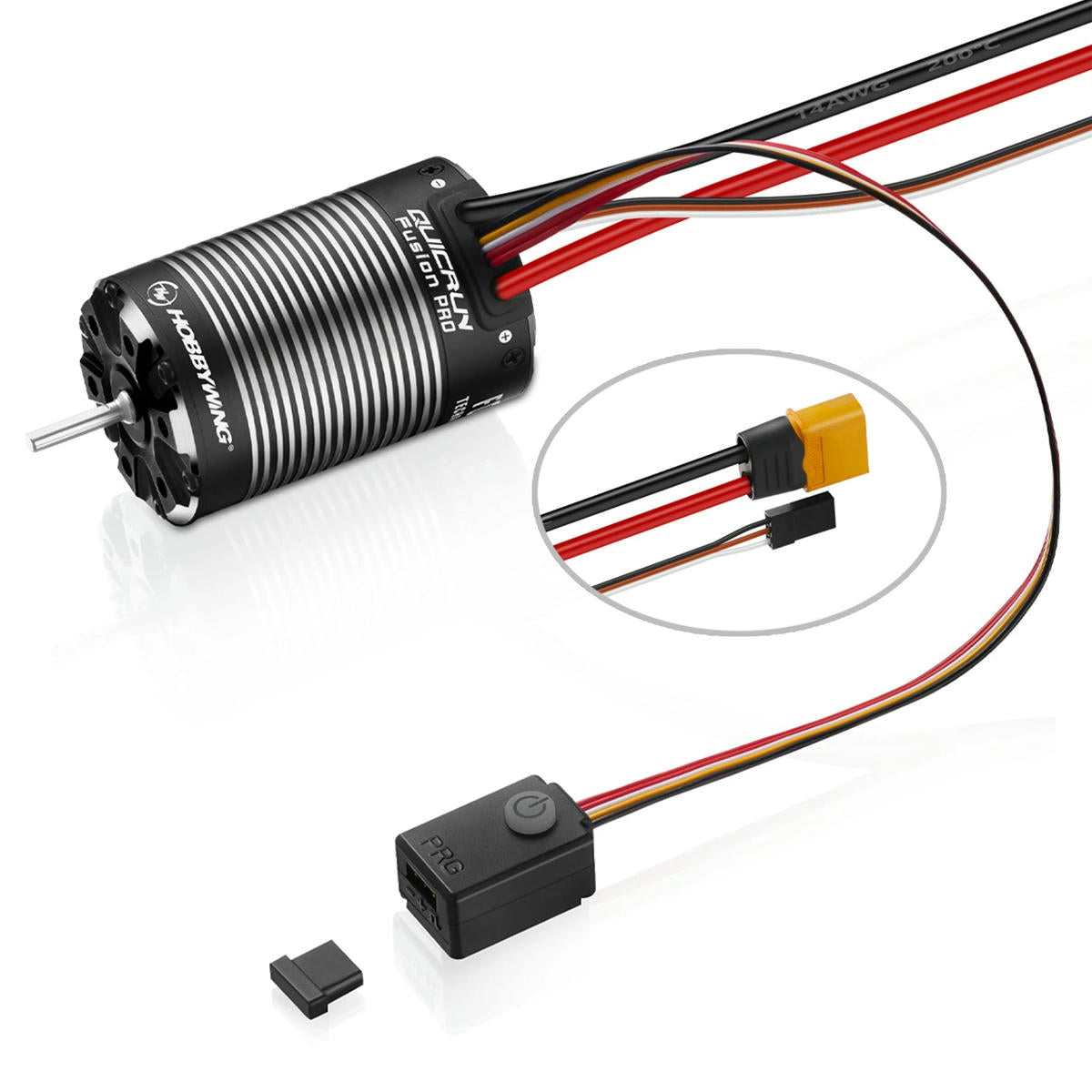

QuicRun FOC Fusion Pro 2300kV Motor/ESC System (2in1) for Rock Crawlers

OPTIMIZED INTEGRATED DESIGN

The QuicRun Fusion Pro is a cutting-edge 2-in-1 brushless motor and speed controller (ESC) system, featuring a 2300kV FOC system. This innovative design boasts an overall length of 58mm, which is 6mm shorter than previous versions, ensuring a cleaner and more streamlined appearance for ease of installation.

VERSATILE OPERATING MODES

This advanced system supports multiple operational modes to accommodate various application needs. These include constant speed mode (forward and reverse), normal mode (with forward and reverse and brake), and normal mode without the constant speed function, allowing for superior control in all scenarios.

SUPERIOR WATER AND DUST PROTECTION

With an IP-67 waterproof rating, the QuicRun Fusion Pro guarantees exceptional protection against water and dust infiltration. This robustness enables the power system to operate effectively across diverse surfaces, including mud, sand, ice, and snow, without compromising performance.

ADJUSTABLE PARAMETERS FOR CUSTOMIZATION

The ESC comes equipped with 13 adjustable parameters, allowing for precise tuning to meet specific driving preferences. These new parameters include maximum braking force, speed fluency, start mode (Punch), throttle midpoint area, and several practical adjustments for an optimized driving experience.

PRODUCT SPECIFICATIONS

Specifications of the QuicRun Fusion Pro include a current rating of 60A continuous and 200A peak, support for input voltage of 2-3S LiPo or 6-9 Cells NiMH, and a 4-pole motor. The dimensions are 37mm in diameter and 58mm in length, with a total weight of 209g including wires and connectors. The BEC output is available at 6V/7.4V, 6A.

Experience unparalleled versatility and reliability with a system designed for rugged terrains and extreme conditions.
