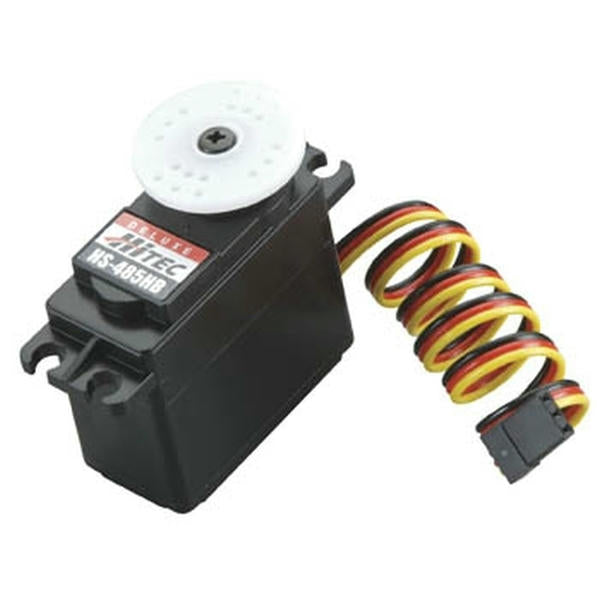

Hitec HS-485HB Deluxe Karbonite Gear Servo (0.18s / 83 oz-in, 1.57x0.78 x 1.49)

This is a Hitec HRC33485S HS-485HB Deluxe Karbonite Gear Servo. It comes with a universal connecter that works will all major radio systems (including Futaba, Hitec, JR and Airtronics).

FEATURES:

• Ideal for 1/10 scale vehicle steering and throttle applications, .20- .60 class aircraft, boats and all EP and GP .30-.50 class helis
• Karbonite gear train that is four times stronger than standard plastic gears
• Three pole motor and single ball bearing output shaft

INCLUDES: HS-485HB Premium Standard Servo, 0.94 (24mm) diameter round horn, 1.2 (31mm) diameter 4-point horn, 1.3 (34mm) double arm horn, 1.2 (30.5mm) single arm horn, four each rubber grommets, eyelets and mounting screws, universal connector

REQUIRES: Installing in model and connecting to control linkage and receiver

SPECS:

• Size: 1.57 x 0.78 x 1.49 (40 x 20 x 38mm)
• Weight: 1.59oz (45g)
• Output @ 4.8V power input: 0.22 sec Torque: 66.6 oz-in (4.8kg-cm)
• Output @ 6V power input: 0.18s4.8 kg-cm) 83.3 oz-in (6.0 kg-cm)
• Drivetrain Type: Top ball bearing
