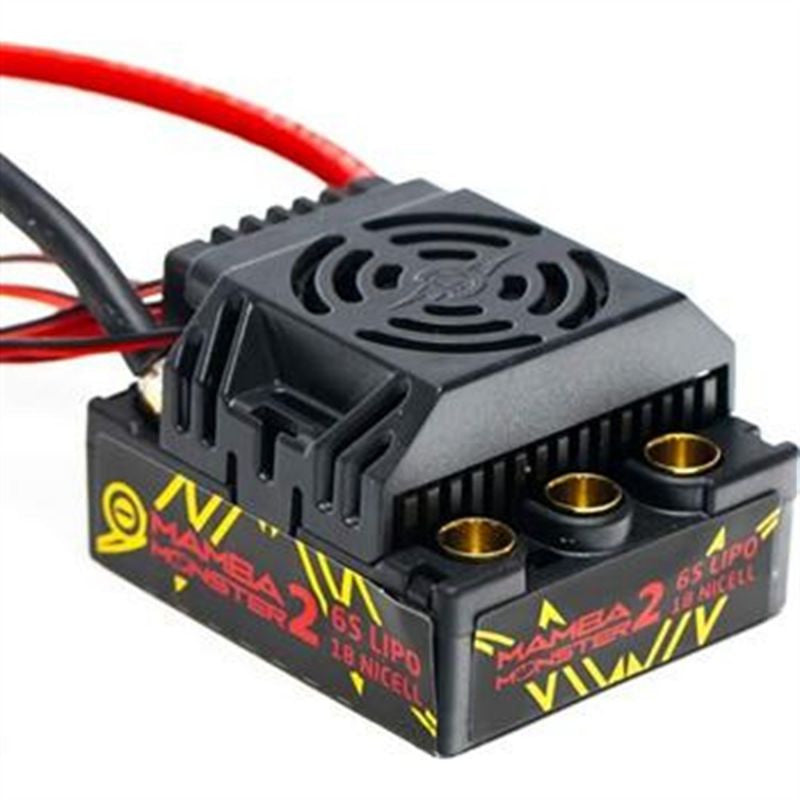

Castle Creations Mamba Monster 2 1/8 Scale Brushless Motor Speed Controller ESC

This is the Castle Creations CSE010-0108-00 Mamba Monster 2 25V Brushless Motor Electronic Speed Control (ESC) for 1/8th scale vehicles.

FEATURES:

• Compatible with on-road, buggies, truggies and monster trucks running up to 6S LiPo batteries and weighing up to 15lbs (6.8kg)
• Waterproof design allows running in nearly any environment (see COMMENTS below)
• USB programming capability via the Castle Link USB adapter (CSE010-0063-00 - sold separately)
• Solder posts allow battery wire length and direction to be easily changed
• One year limited warranty through Castle Creations beginning at date of purchase. Warranty does not cover abuse, neglect, or damage due to incorrect wiring, over voltage or overloading. All warranty issues must be handled directly through the manufacturer.

INCLUDES: Mamba Monster 2 25V ESC with Cooling Fan, On/Off Switch, Fan Plug, Motor Wires, Receiver Wire with Connector and Instructions

SPECS:

• Input Voltage: 2S-6S LiPo
• Max Continuous Amperage: 120A full continuous operation with cooling airflow
• BEC: User selectable output between 5 and 7 volts
• Brake: Proportional
• Revesible: Yes, with lockout
• Dimensions: 1.86 x 2.19 x 1.33" (47 x 56 x 34mm)
• Weight: 3.93oz (111.5g) without battery connector

Note: Thi ESC is not intended for use while submerged in liquid. If operated in wet conditions, rinse with fresh water to remove dirt or corrosives then fully dry unit. Fan is not water resistant. Remove fan from ESC before exposing vehicle to liquids.
