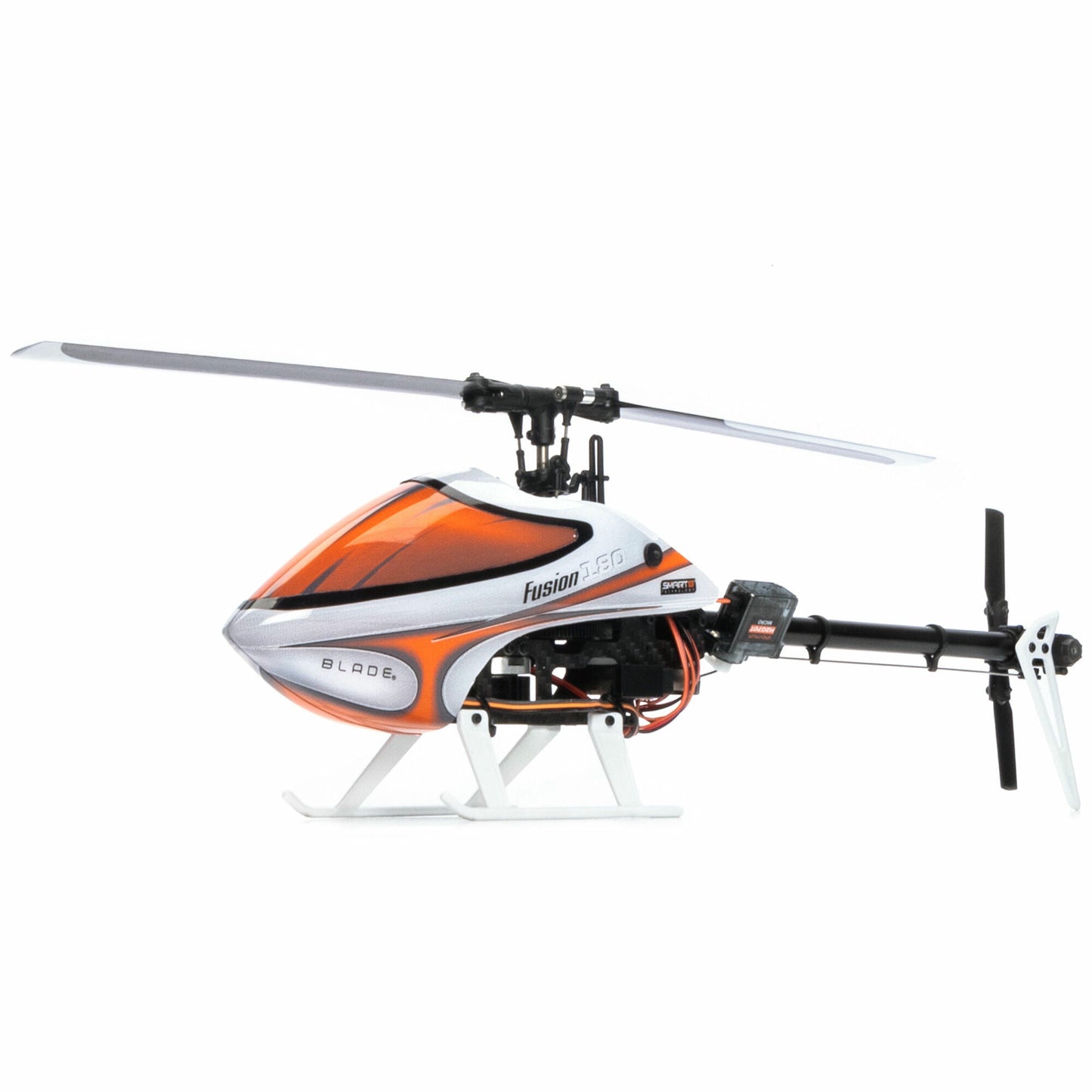

Blade Helicopters Fusion 180 BNF 3D Collective Pitch Helicopter w/AS3X/Safe

This is a Blade Helicopters BLH05850 Fusion 180 Smart BNF Basic radio controlled helicopter (see below for items needed to complete this heli).

Product Details

Featuring the latest advancements in Spektrum™ technology, the Blade® Fusion™ 180 Smart helicopter continues the legacy of the Blade Fusion line and is a high-performance 3D machine ready for intermediate helicopter pilots.

Key Features

SAFE: Optional Stability Mode and Panic Recovery

SMART: Integrated Smart Technology

RUGGED DURABILITY: Carbon Fiber Components

 In The Box

(1) Factory Assembled Blade Fusion 180 Smart Helicopter With:

(1) Spektrum AR6250MHX Flybarless Flight Controller

(1) Brushless Outrunner Motor, 3900Kv

(1) Spektrum™ Avian™ Smart 15 Amp ESC

(3) Sub-Micro Digital Metal Geared Heli Cyclic Servos

(1) Sub-Micro Digital Heli Servo

(1) Product Manual



Needed to Complete

(1) 6+ Channel Spektrum™ 2.4GHz DSM2®/DSMX® Transmitter

(1) 450mAh 4S 14.8V 30C LiPo Battery with IC2® Connector

(1) Compatible LiPo Charger With iC2 To iC3 Charge Adapter (SPMXCA320 recommended)

Fusion 180 Smart BNF Basic

Quick Links

HIGH PERFORMANCE IN A SMALL SIZE

Featuring the latest advancements in Spektrum™ technology, the Blade® Fusion™ 180 Smart helicopter continues the legacy of the Blade Fusion line and is a high-performance 3D machine ready for intermediate heli pilots. The revised Fusion adds a redeveloped carbon fiber main frame that's lightweight and extremely rigid. Additionally, a belt-driven tail and newly developed tail case improves tail performance and overall durability. Hosting this belt is an over-sized tail boom large enough to eliminate the need for boom supports. Optimized servo geometry greatly reduces mechanical loss and improves control efficiency to the swashplate. A painted carbon fiber tail fin finishes the sleek styling of the Fusion 180 Smart redesigned canopy. Featuring the latest in Spektrum technology, the Fusion 180 Smart is equipped with the expertly tuned micro 6250HMX Flight Controller yet remains adjustable for pilots to fine tune to their flying style. Also, a Spektrum™ Avian™ 15 Amp ESC offers improved, precise head speed control for that high performance flight that doesn't lag behind. Innovative SAFE technology help pilots progress from simple maneuvers to advanced 3D stunts with confidence. Plus, with the inclusion of Smart technology, battery charging, and power system management is now easier than ever and virtually worry free. With BNF Basic convenience, pilots simply add a 4S 450mAh battery, bind their 6+ channel Spektrum DSMX transmitter, and take to the skies.

SAFE Technology SAFE® Technology

The Blade® Fusion™ 180 Smart helicopter features exclusive SAFE® (Sensor Assisted Flight Envelope®) technology, a revolutionary electronic flight envelope protection system that makes it easy for anyone to fly helicopters with confidence by providing flight mode versatility and Panic Recovery mode that automatically returns the heli to a level attitude.

Spektrum Avian Smart 15 Amp ESC included  Spektrum™ Avian™ Smart 15 Amp ESC included

The Spektrum™ Avian™ Smart 15 amp ESC transmits Battery voltage and ESC data straight to your Spektrum Transmitter all over one wire. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, temperature and RPM. The Avian ESC 32-bit M4 processor produces higher resolution signal input and more accurate motor output for a locked in and active throttle response.

Spektrum AR6250MHX Flybarless Controller  Spektrum™ AR6250MHX Flybarless Controller

Cutting-edge Spektrum technology is featured throughout this beast from Spektrum H2070 cyclic and H2070T tail servos with Optimized Servo Geometry to the new ground-breaking Spektrum AR6250MHX flybarless system. This new flybarless controller features advanced adaptive flight control algorithms, forward programming, 6-axis M.E.M.S. inertial sensor, low-latency high-speed operation, two remote receiver ports for diversity, and a vibration rejecting aluminum lower case.

Optimized Fusion Design  Optimized Fusion Design

The carbon fiber main frame takes rigidity to another level for a rock-solid flight experience. An oversized tail boom eliminates the need for boom supports and is crowned by an ABS plastic tail case improving vibration damping and performance.

Belt Driven Tail Belt Driven Tail

The Fusion 180 Smart features a belt driving tail improving durability and tail performance.

Aggressive and Attractive Trim Scheme Aggressive and Attractive Trim Scheme

The Fusion 180 features an expertly painted canopy and matching tail fin that is both attractive and purposeful. The bright color scheme is easy to see when tearing up the sky and is sure to catch the eye of everyone at the flight line.

Footer Image

Product Specifications

Approximate Flight Time               3 - 4 Minutes

Battery Sold Separately

Canopy/Body Material   Plastic

Channels             6

Charger Sold Separately

Completion Level             Bind-N-Fly Basic

Power Type        Electric

Main Blade Material       Plastic

Main Frame Material      Carbon Fiber

Main Motor Type             Brushless

Main Rotor Blade Length              7.08 (180 mm)

Main Rotor Diameter     16.22 (412 mm)

Main Rotor Head Type   Collective Pitch Flybarless

Product Weight 8.46 oz (240g)

Product Width   2.36 (60 mm)

Receiver              Included

Servos  Included

Skill Level            Level 3

Speed Control   Included

Swashplate Type              120 Degree CCPM

Tail Blade Material           Plastic

Tail Drive             Belt Drive

Tail Rotor Blade Length 1.41 (36 mm)

Tail Rotor Diameter         3.93 (100 mm)

Technology         Smart, AS3X and SAFE
