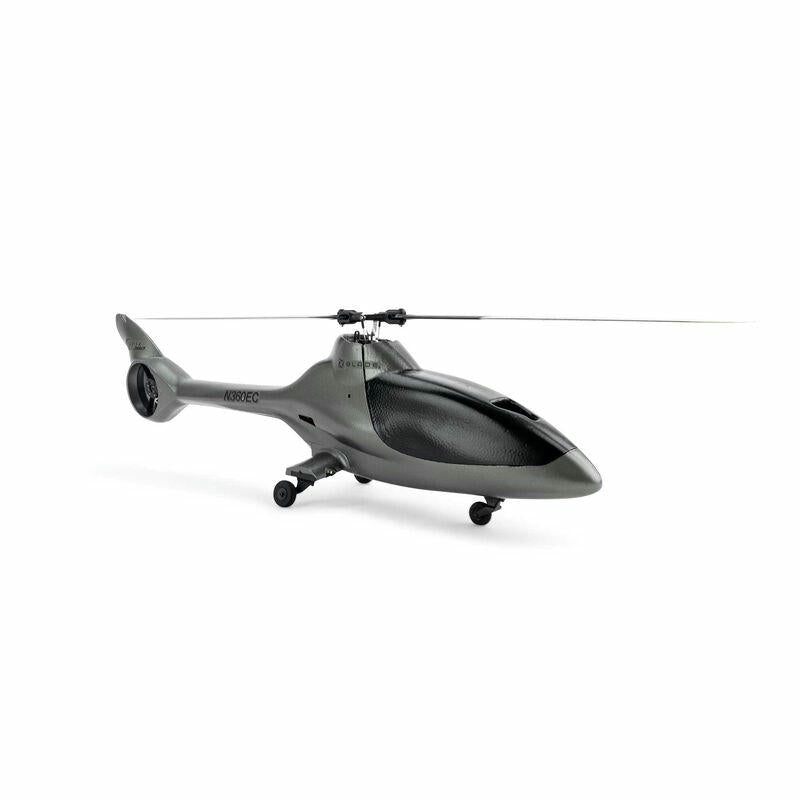

Blade Helicopters Eclipse 360 BNF Basic with AS3X and SAFE BLH01250

This is a Blade Helicopters BLH01250 Eclipse 360 Bind-and-Fly Basic radio controlled helicopter (see below for items needed to complete)

The Blade® Eclipse 360 combines a fully-molded EPO body with futuristic looks and a high-performance airframe to deliver a unique blend of hovering, scale-like, sport, and aerobatic flying capabilities for intermediate to experienced heli pilots.

Product Details

 In The Box

(1) Blade Eclipse 360 with:

(1) Brushless Outrunner Tail Motor (installed)

(1) Brushless Outrunner Main Motor (installed)

(3) Spektrum Digital, Metal-Geared Servos (installed)

(1) Spektrum 6250HX Flybarless Control System (installed)

(1) Spektrum 4651T 2.4GHz DSMX® Receiver with Telemetry (installed)

(1) Spektrum Dual 30A Main and 15A Tail Brushless Smart ESC (installed)

(1) Main Blade Holder

(1) Product Manual

 Needed to Complete

Full-range 6+ channel Spektrum DSMX®/DSM2® compatible transmitter (programmable for helicopters)

3S 11.1V 2200–3200mAh LiPo with EC3™ or IC3® Connector

Compatible LiPo charger

Overview

Back to Top ^

Features

An innovative blend of futuristic looks and high performance to deliver a unique helicopter flying experience

A lightweight yet durable, fully molded and painted EPO body featuring LED navigation and landing lights

Low-profile skids plus an optional-use wheel set for a different look and ground handling experience

Spektrum Dual Smart ESC provides real-time battery voltage, motor RPM, and other data to compatible transmitters

Factory-installed Spektrum FC6250HX flybarless flight controller featuring exclusive AS3X and SAFE technologies

Easier to fly with innovative and optional-use SAFE flight envelope protection

The unmatched stability and locked-in feel of exclusive AS3X technology

Factory-installed digital, metal-geared cyclic servos with precise ball-link equipped linkages

Two Spektrum brushless outrunner motors deliver excellent performance and flight times

Convenient, magnetically-secured canopy/hatch with a large battery compartment

Compatible with popular and common 3S 2200–3200mAh LiPo batteries

Aluminum head block and carbon fiber main rotor blades

Fully factory-assembled and nearly ready to fly right out of the box

Overview

An innovative blend of futuristic looks including a fully molded and painted EPO body wrapped around a high-performance airframe makes the Blade® Eclipse 360 an eye-catching addition to any RC pilot’s collection. It’s designed to be capable of smooth hovering plus scale-like and sport flying for intermediate pilots, yet is also capable of aerobatics and even mild 3D in the hands of experienced pilots. The expertly-tuned FC6250HX flybarless control system includes optional-use SAFE technology for angle limits and automatic self-leveling to help prevent crashes in Normal mode, and no limits in all other flight modes – plus Panic Recovery to “bail out” at the push of a button if you ever need it! The powerful brushless main and tail motors are connected to a Spektrum Dual Smart ESC that delivers real-time telemetry data to AirWare™ equipped transmitters, and they’re compatible with common and popular 3S 2200–3200mAh batteries. Digital, metal-geared servos, an aluminum head block, and carbon fiber main rotor blades deliver reliable and precise control for the factory-assembled airframe. The lightweight yet durable body is equipped with LED navigation and landing lights along with hard mounting points for the low-profile skids that provide a streamlined “gear up” look, or you can install the included wheel set for a different look and ground handling experience. And it’s all delivered in a model that’s ready to bind to your favorite Spektrum transmitter to offer a unique helicopter flying experience you can’t get anywhere else!

Skill Level 2 – Some Experience Required

Skill Level 2 aircraft, like this one, are suitable for RC pilots with some experience and the skills to assemble and/or set up and fly similar class models. Although the Eclipse 360 is equipped with optional-use SAFE technology, it’s not a suitable first-ever RC helicopter for new pilots or “next step after a trainer” model for low-time RC pilots. You should have the experience and skills necessary to successfully fly Collective Pitch (CP) helicopters like the Blade 230, 330, Fusion 360, or other similar class models before attempting to fly the Eclipse 360.

Bind-N-Fly Completion Level Advantage

Already own a Spektrum™ transmitter? Bind-N-Fly (BNF) aircraft make getting into the air quickly and with the best control experience possible easier than ever. They come out of the box with the power system, servos, and a Spektrum 2.4GHz receiver installed, so all you need to do is bind the receiver to a compatible transmitter, finish any final assembly, and fly!

Exclusive Technologies

The factory-installed and expertly-tuned FC6250HX flybarless flight controller features exclusive Spektrum™ AS3X® and SAFE® technologies. Optional-use SAFE technology features angle limits and automatic self-leveling to help prevent crashes in Normal mode. AS3X smooths out the effects of wind and turbulence with no limits or self-leveling in all other flight modes so you can fly inverted and perform aerobatics too. Plus, you can use Panic Recovery to “bail out” at the push of a button if you ever need it!

Telemetry Capable

Telemetry Capable

The Eclipse 360 is equipped with a Spektrum Smart ESC, flight controller, and a receiver that provides – with Smart and non-Smart batteries – real-time overall flight battery voltage, motor RPM, and other telemetry information to compatible Spektrum AirWare equipped transmitters (including the DX6e and 8e, DX6 G2/G3 and 8 G2, the DX9, NX6 to 20, the iX12 to 20, and others) while you fly.

Durable Precision

Digital, metal-geared cyclic servos, an aluminum head block, and carbon fiber main rotor blades deliver excellent durability and precise control.

Collective Pitch

The collective pitch main rotor mechanics offer smooth control to deliver a unique blend of hovering, scale-like, sport, and aerobatic flying capabilities.

High Power

The powerful brushless main and tail motors are connected to a factory-installed Spektrum Dual Smart ESC and are compatible with common and popular 3S 2200–3200mAh batteries.

Unique Body

The lightweight yet durable body is molded from EPO and fully-painted to provide a unique and futuristic look. It’s also equipped with LED navigation and landing lights for improved visibility.

Gear Options

Factory-installed low-profile skids offer a streamlined “gear up” look and work great for takeoffs and landings on smooth surfaces. Or you can install the included optional-use wheel set for a different look and ground handling experience on smooth, grass, and other surfaces.

Fully Assembled

The Eclipse 360 arrives 100% factory-assembled and nearly ready to fly right out of the box! It’s equipped with industry-leading Spektrum™ 2.4GHz technology that binds to your 6+ channel DSMX®/DSM2® equipped transmitter so you can be flying in almost no time after opening the box.

Specifications

Approximate Assembly Time Fully factory-assembled

Battery Sold Separatel

Channels 6

Charger Sold Separately

Completion Level Bind-N-Fly Basic

Main Blade Material Carbon Fiber

Main Motor Type Brushless

Main Rotor Blade Length 13.78 (350 mm)

Main Rotor Diameter 30.6 (777 mm)

Main Rotor Head Type Collective Pitch Flybarless

Power Type Electric

Product Height 7.6 (193 mm)

Product Length 30.8 (782 mm)

Product Weight 33 oz [935 g] Flying Weight

Product Width 4.7 (119 mm)

Receiver Included

Recommended Motor Battery 3S 11.1V 2200–3200mAh LiPo with EC3 or IC3 Connector

Servos Included

Skill Level Level 2

Speed Control Included

Swashplate Type 120 Degree CCPM

Tail Blade Material Plastic

Tail Drive Direct Drive

Tail Motor Type Brushless Outrunner

Tail Rotor Diameter 3 (76 mm)

Technology Smart, AS3X and SAFE
