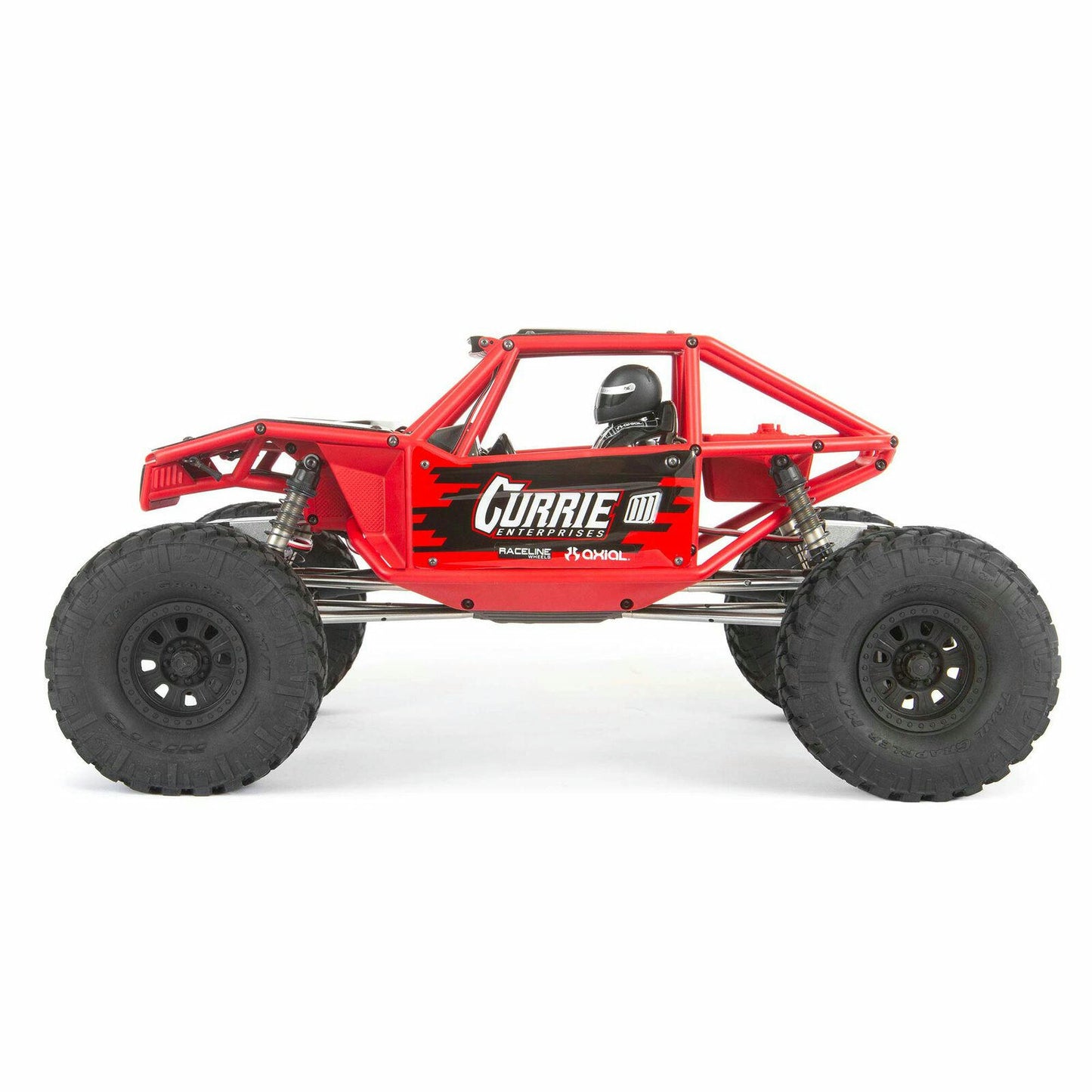

Axial Capra 1.9 RTR 1/10th 4WS RTR Unlimited Trail Buggy Currie Red AXI03022BT1

This is an Axial Racing AXI03022BT1 1/10^th Scale Capra 1.9 4WS (Four Wheel Steering) Unlimited Trail Buggy with Red Currie Body. (See below for items needed to complete)

Ready-to-run with a Spektrum™ DX3™ transmitter included, the Axial® Capra™ 1.9 4WS Unlimited Trail Buggy delivers true rock crawling realism. With its precise 4-wheel steering, you can position the crawler and tires perfectly to overcome obstacles!

Includes front and rear steering out of the box for the ultimate in precise maneuverability

Currie F9 Portal Axles offer over 45% of steering with extra ground clearance for the best crawling performance

Adjustable oil-filled shocks feature hard anodized, threaded shock bodies and a single coilover spring

Metal universal joints on both axles provide smooth action and 45 degrees of steering for an efficient, high-performance drivetrain

Nitto Trail Grappler 1.9 tires are mounted on injection-molded, 3-piece, licensed Raceline beadlock wheels

Product Details

 In The Box

(1) Axial® Capra™ 1.9 4WS Unlimited Trail Buggy RTR

(1) Spektrum™ DX3 2.4GHz Smart 3-Channel Radio (installed)

(1) Spektrum™ Firma™ 40A Brushed Smart 2-in-1 ESC and Receiver (installed)

(1) Axial® 35T Brushed Motor (installed)

(2) Spektrum™ 15Kg Waterproof Servo 23T (installed)

(1) Axial® LED Light Set (installed)

(1) Product Manual

 Needed to Complete

(1) 2-3S Shorty LiPo Battery

(1) Compatible LiPo Battery Charger

1/10 Capra 1.9 4WS Unlimited Trail Buggy RTR, Red

Quick Links

Introduction

The Axial® Capra™ 1.9 Unlimited Trail Buggy is now available in a new version that gives crawling enthusiasts an even more realistic and effective way to maneuver. Out of the box, the ready-to-run Capra™ 1.9 4WS Unlimited Trail Buggy features front and rear steer to make it super capable on the rocks.

Features

Includes front and rear steering out of the box for the ultimate in precise maneuverability

Also includes an optional Dig setup — unlock the Dig transmission and upgrade to a 4-channel radio and micro servo to operate the Dig feature while also having rear steering

Currie F9 Portal Axles offer over 45% of steering with extra ground clearance for the best crawling performance

Tube chassis design offers the realistic scale looks of a rock crawler buggy and is optimized for suspension and tire clearance

Included Spektrum™ DX3™ 2.4GHz DSMR® radio provides superior range, response, and interference resistance and is compatible with Smart technology

Front and rear axles each come with a Spektrum™ S614 Metal-Gear servo installed for steering

Adjustable oil-filled shocks feature hard anodized, threaded shock bodies and a single coilover spring

All pivot points are on stainless steel balls for a durable, long-lasting suspension point

Metal universal joints on both axles provide smooth action and 45 degrees of steering for an efficient, high-performance drivetrain

Nitto Trail Grappler 1.9 tires are mounted on injection-molded, 3-piece, licensed Raceline beadlock wheels

Overview

Axial® engineers have installed steer axles at both ends of this Capra™ for the enhanced maneuverability of 4-wheel steering. Using the third channel button of the included Spektrum™ DX3™ transmitter, you can steer the rear axle from 0 (straight) to 50% or 100%, left and right, to position the tires perfectly for conquering obstacles. In full-scale crawling competition, such subtle maneuvering is a must to avoid losing points from reversing or hitting a marker on the course. With the Capra™ 1.9 4WS, you experience more true rock crawling realism!

The transmission also includes an optional Dig setup that's disabled from the factory (and requires upgrading to a 4-channel radio and micro servo for use). To have Dig and rear steering capabilities, remove the spacer from inside the transmission and install your micro servo. With the flick of a transmitter button, you can now activate Dig and lock the rear drive axle. That allows you to pull the buggy around by the front end while holding the rear in place.

The tube chassis of the Capra™ 1.9 4WS Unlimited Trail Buggy offers realistic scale rock crawler buggy looks and is optimized for suspension and tire clearance. Currie F9 Portal Axles deliver over 45% of steering with extra ground clearance. Both axles feature metal universals that produce smooth action for an efficient and durable drivetrain. All links and suspension pivots are made of rust-proof stainless steel and provide precise, durable suspension points.

The included Spektrum™ DX3™ transmitter features exclusive DSMR® technology for superior range, response, and interference resistance. It's also fully compatible with the Smart telemetry potential provided by the vehicle's Spektrum™ Firma™ 2-in-1 40A Smart ESC/Receiver. Using a Spektrum™ Smart LiPo pack, you can follow on-board battery capacity on the transmitter's voltage level indicator while driving with confidence in any weather and trail conditions — the electronics are protected by a waterproof and dustproof design.

The Capra™ 1.9 4WS Unlimited Trail Buggy includes larger, licensed Nitto Trail Grappler M/T tires that increase ground clearance while offering a wider tire patch for more traction wherever you crawl — on a trail, a comp course, or backyard crawl course. The tires are mounted on licensed Raceline injection-molded wheels with a 3-piece beadlock design for easy tire removal and replacement without gluing.

Factory-assembled and finished, the Axial® Capra™ 1.9 4WS Unlimited Trail Buggy RTR comes with the transmitter, receiver/ESC, motor, two steering servos, and AA transmitter batteries. All you need to supply is your choice of suitable battery and charger.

FRONT AND REAR STEERING FRONT AND REAR STEERING

Axial® designers have installed two steer axles at both ends of this Capra™ to give you the ultimate in maneuverability. Using the included Spektrum™ DX3™ transmitter's third-channel button, you can choose to steer the rear axle from 0 (straight) to 50% or 100%, left and right. Want to make it even more maneuverable? Then unlock the Dig transmission and upgrade to a 4-channel radio to operate the Dig feature while also having rear steering!

DIG OPTIONED TRANSMISSION  DIG OPTIONED TRANSMISSION

The Capra™ 1.9 4WS Unlimited Trail Buggy transmission includes an optional Dig setup that's disabled from the factory. Using the Dig function requires a transmitter and receiver with at least four channels plus a micro servo. After installing the receiver, simply remove the spacer from inside the transmission and install your micro servo. With the flick of a button on your transmitter, you're now able to activate Dig and lock the rear drive axle. That allows you to pull the buggy around by the front end while holding the rear in place.

CURRIE F9 LICENSED PORTAL AXLES  CURRIE F9 LICENSED PORTAL AXLES

The Currie F9 Portal Axles are designed specifically for the best performance when crawling, offering over 45% of steering with extra ground clearance.

TUBE CHASSIS DESIGN  TUBE CHASSIS DESIGN

The tube chassis design offers the realistic scale looks of a rock crawler buggy and is optimized for suspension and tire clearance.

SPEKTRUM^™ DX3^™ 2.4GHz DSMR^® TRANSMITTER  SPEKTRUM™ DX3™ 2.4GHz DSMR® TRANSMITTER

The included Spektrum™ DX3™ radio features exclusive DSMR® technology for superior range, response, and interference resistance. It's also fully compatible with the Smart telemetry potential provided by the vehicle's installed Spektrum™ Firma™ 2-in-1 40A Smart ESC/Receiver.

TWO METAL-GEARED SERVOS TWO METAL-GEARED SERVOS

Each end of the Capra™ 1.9 4WS Unlimited Trail Buggy is equipped with a Spektrum™ S614 Metal-Gear servo to steer the front and rear axles.

ALUMINUM OIL-FILLED SHOCKS ALUMINUM OIL-FILLED SHOCKS

The shock bodies are threaded and hard-anodized for a smooth, long-lasting finish. Adjust the dampening to your optimal suspension settings by increasing or decreasing the spring pre-load simply by rotating the threaded shock collars.

METAL UNIVERSAL JOINTS METAL UNIVERSAL JOINTS

Both axles feature metal universals that deliver smooth action for an efficient and durable drivetrain. The universals provide 45 degrees of steering, too.

STAINLESS STEEL SUSPENSION LINKS AND PIVOT BALLS  STAINLESS STEEL SUSPENSION LINKS AND PIVOT BALLS

All links and suspension pivots are made of rust-proof stainless steel and provide precise, durable suspension points.

3-PIECE BEADLOCK WHEELS  3-PIECE BEADLOCK WHEELS

The licensed Raceline injection-molded wheels feature a 3-piece beadlock design, allowing the tires to be removed and replaced easily without gluing.

LARGER NITTO TRAIL GRAPPLER TIRES  LARGER NITTO TRAIL GRAPPLER TIRES

The Capra™ 1.9 4WS Unlimited Trail Buggy includes the updated, licensed 4.75 Nitto Trail Grappler M/T 1.9 tires from the SCX10™ III. These larger tires increase ground clearance while offering a wider tire patch for more traction.

READY-TO-RUN  READY-TO-RUN

The Capra™ 1.9 4WS Unlimited Trail Buggy comes assembled and includes a transmitter, receiver/ESC, motor, two steering servos, and AA transmitter batteries. All you need to supply is a battery and charger.

Product Specifications

Battery Sold Separately

Ground Clearance            3 (76.2mm)

Internal Gear Ratio          5.14:1

Product Length 17 (432 mm)

Suspension         4-link solid axle

Radio     Included

Power Type        Electric

Gear Pitch           32P

Servos  Included

Product Width   10.25 (260 mm)

Front Track         8.75 (222.25mm)

Final Drive Ratio                37:1

Motor Type        Brushed

Rear Track           8.75 (222.25mm)

Speed Control   Included

Wheelbase         12.5 (318 mm)

Approximate Assembly Time      No assembly required

Body      Screened polycarbonate

Brakes  Integral with ESC

Scale      1/10

Charger Sold Separately

Differential         Locked

Receiver              Included

Shock Type         Aluminum body coil-over spring

Ball Bearings      Full set

Chassis Injection molded tubular

Completion Level             Ready-To-Run

Drivetrain            4WD

Drive Type          Forward/Brake/Reverse

Product Height  8.25 (210 mm)

Product Weight 4.5lbs (2.04kg)

Vehicle Type      Rock Crawler

Water-Resistant               Yes
