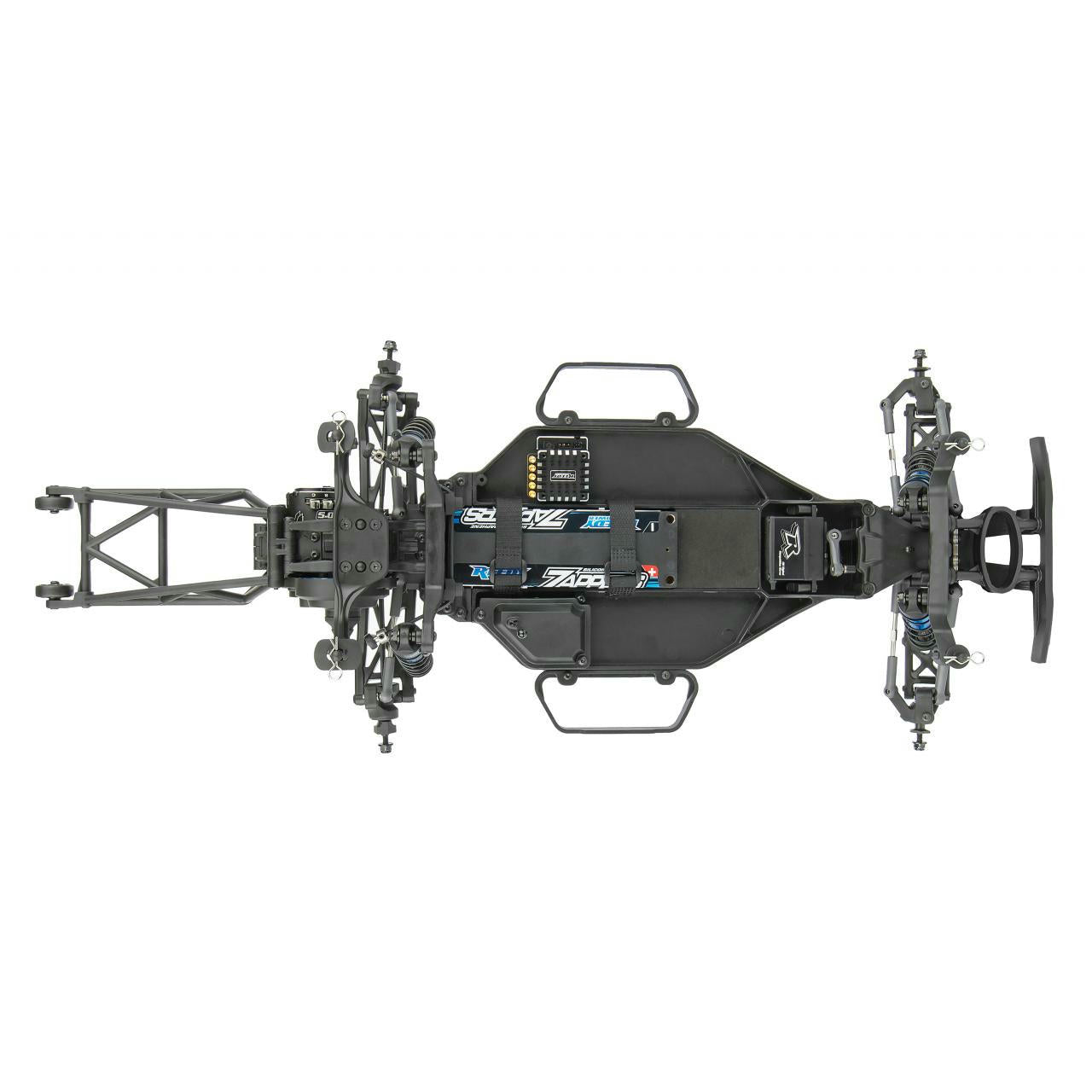

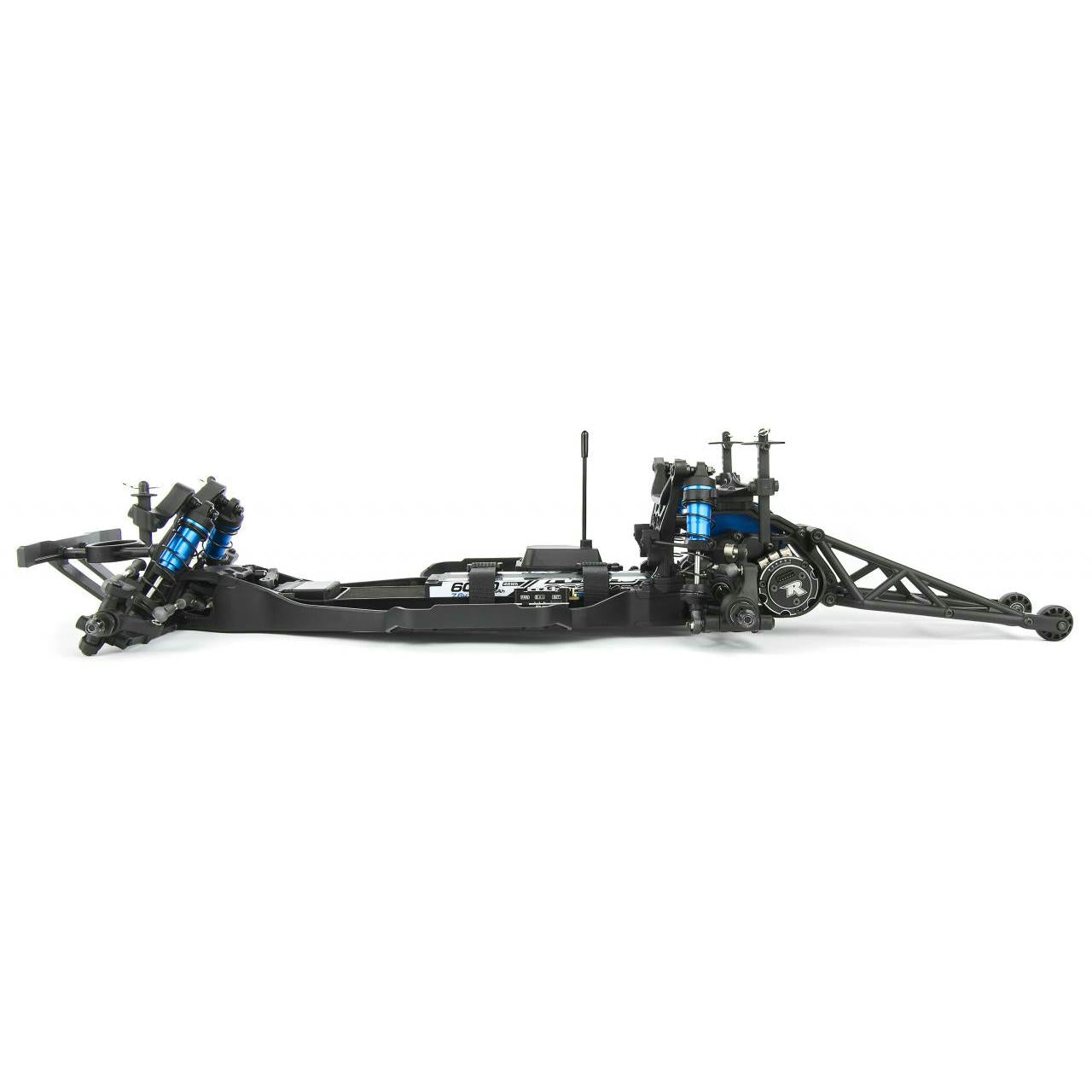

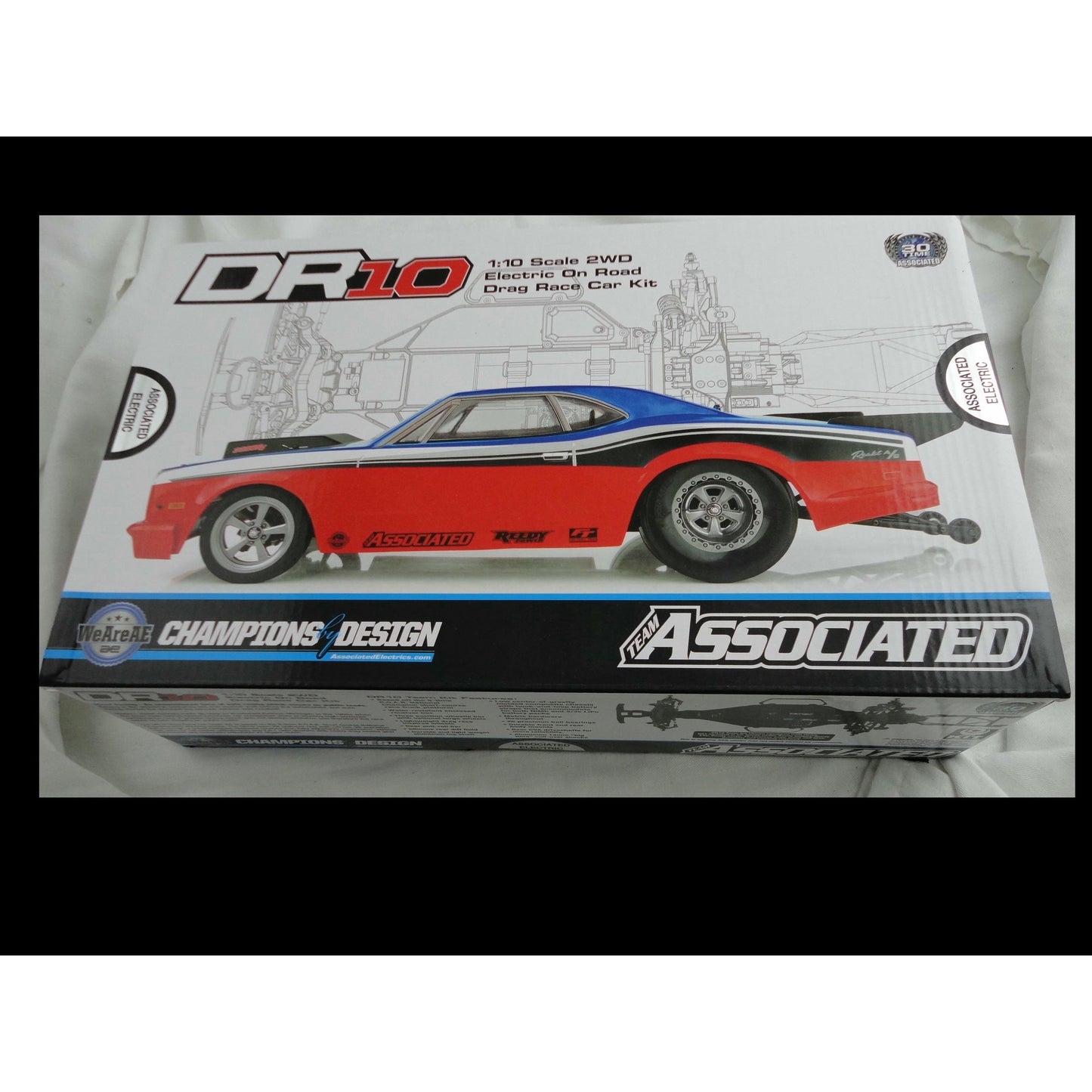

Team Associated Reakt DR10 1/10th Scale 2WD Drag Car Unassembled Team Kit 70027

This is a Team Associated ASC70027 DR10 Drag Race Car Team Kit. (Electronics, body, tires & wheels NOT included – see below for a full list of items you will need to complete this build)

The DR10 Team Kit features rear anti-roll bar, 26 precision ball bearings, a water-resistant enclosed receiver box, fully adjustable suspension, vertical ball ends for roll center adjustments, and 2.6:1 ratio gearbox with heavy-duty sealed gear differential and externally adjustable V2 slipper clutch.

-Three-position wheelie bar with optional large wheels

-Lightweight drag race inspired wheels

-Rear anti-roll bar

-Rear silicone diff fluid

-Durable and lightweight aluminum top shaft

-Low center-of-gravity molded composite chassis with hook-and-loop battery straps that accommodate for both NiMh and 2/3s LiPo battery packs

-Durable front and rear body mounts

-Rear CVA driveshafts for more reliability

-Aluminum 12mm big bore coil-over shock absorbers

-2.6:1 ratio gearbox with heavy-duty sealed gear differential and externally adjustable V2 slipper clutch

-Rugged steel turnbuckles for adjustable camber and front toe-in

-Fully adjustable suspension geometry

-Vertical ball ends for roll center adjustments, front and rear

-Water-resistant, enclosed receiver box

-Metric hardware throughout

-26 precision ball bearings

ITEMS NEEDED TO COMPLETE:

-540-size electric RC motor (#27452 Sonic 540-M4 Modified Motor 4.5)

-Electronic speed control (#27005 Blackbox 510R Competition ESC w/PROgrammer2)

-2-3 cell 7.4V-11.1V LiPo or 6-7cell NiMH battery pack (#27344 Zappers SG3 8200mAh 115C 7.6V Stick)

-Battery charger

-2-channel surface transmitter and receiver

-Steering servo (#27101 RT1508 Digital HV Hi-Torque Competition Servo)

-1:10 scale 2.2 / 3.0 rear tires and 2.2 front tires

-CA glue for tires and wheels

-1:10 scale Drag Racing (No-Prep) body (#71082 DR10 Reakt Drag Body, clear)

-Polycarbonate-specific spray paint for body, and body scissors
