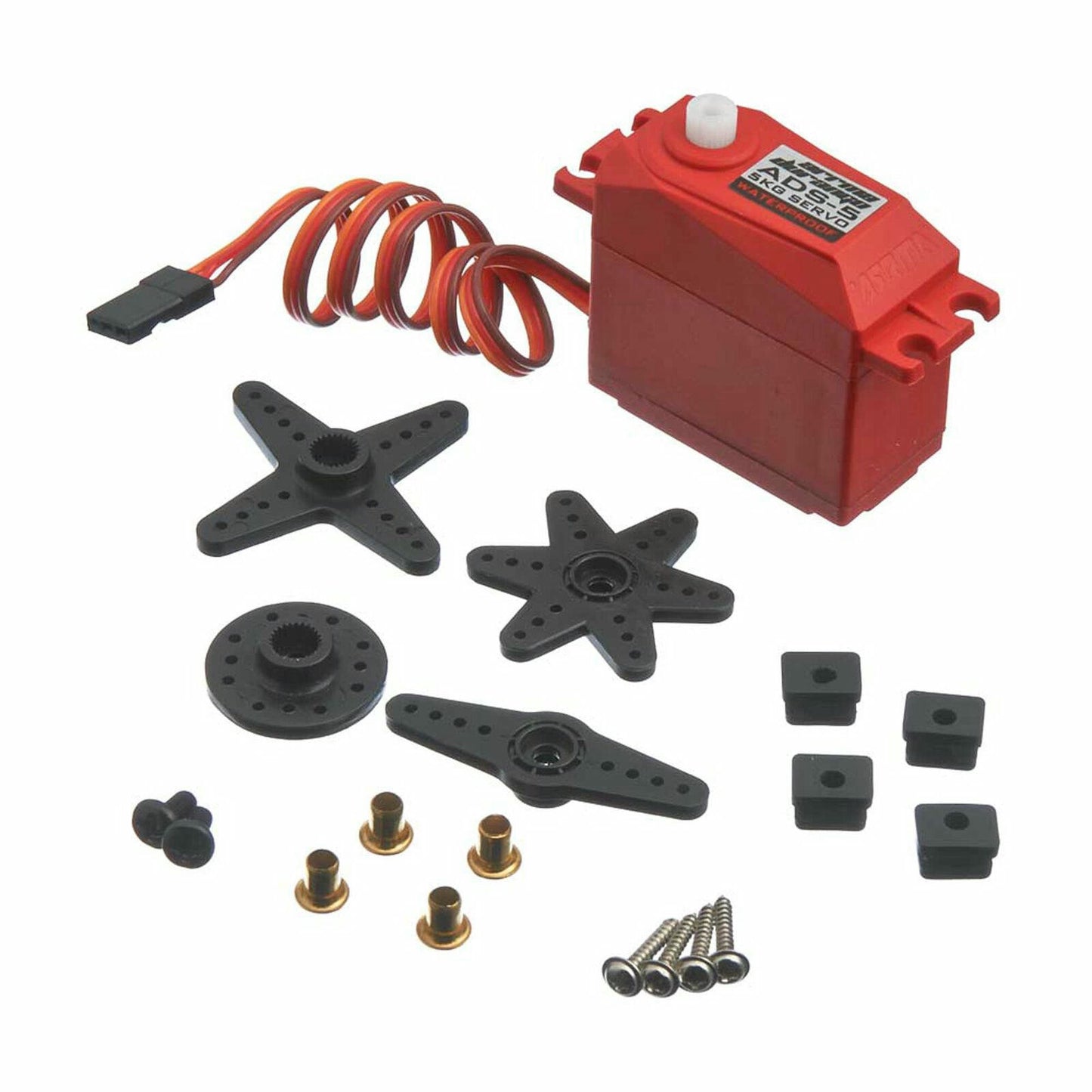

This is an Arrma R/C ARAAR390133 ADS-5 4.5kg Waterproof servo.
The ADS-5 V2 Servo is designed to give you fast and precise steering. Resilient to the elements and built from hard-wearing materials.
Specification:
Case – Red, Water-proof & dust-proof
Bearing – Dual ball bearing
Connector – ‘Futaba style’ 3 pin connector
Gears – HD Composite
Spline – 25 Tooth
Dimensions: 40mm x 38mm x 20mm (Excluding mounting tabs), Industry standard size
Wire length: 300mm
Torque – ADS-5: 5kg/cm (70oz/inch) at 6V
Speed – 0.14 sec/0.12 sec 4.8V/6V
Signal – Analogue
