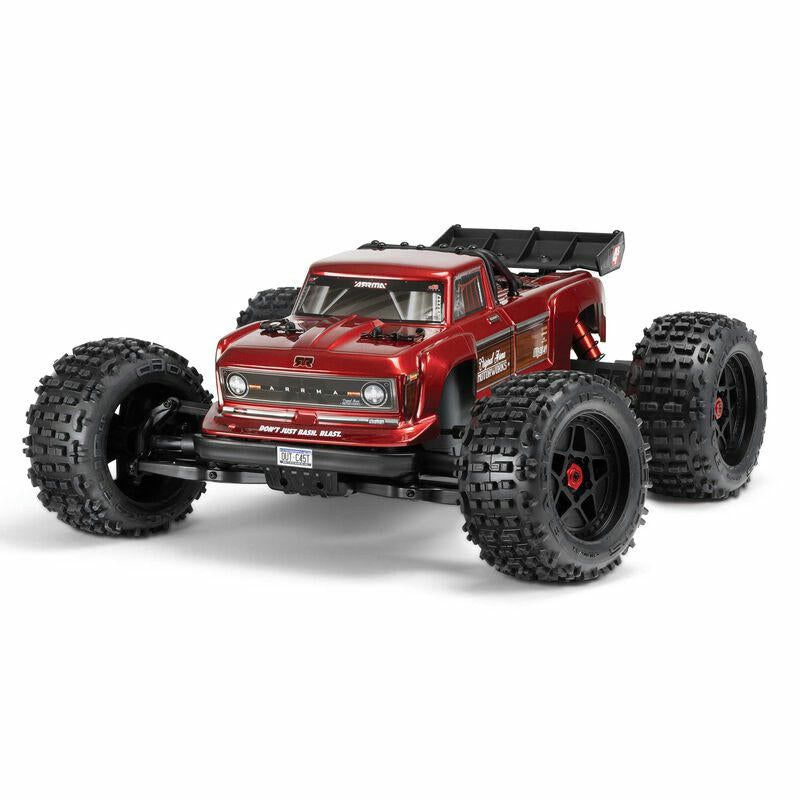

Arrma Outcast 4S 4x4 1/10th Ready-To-Run Stunt Truck ARA4410V2T4 Red

In The Box

(1) ARRMA OUTCAST 4S BLX 4WD 1/10 Scale Stunt Truck RTR

(1) Spektrum Firma 120A V2 Smart Waterproof* ESC

(1) Spektrum Firma 3668 2400Kv Brushless Motor

(1) Spektrum S662 Metal-Geared Waterproof* Digital Servo

(1) Spektrum 2.4GHz SLT3 Transmitter & SR315 Receiver

(4) AA Batteries

(1) Instruction Manual

*For details on waterproof standards, please refer to the instruction manuals.

 Needed to Complete

(2) 2S, (1) 3S, or (1) 4S Hardcase LiPo Battery

(1) Compatible Charger

Bash and stunt with the next evolution in ARRMA 4S BLX performance! The OUTCAST 4S BLX RTR now has a center diff for the ultimate traction, an updated Spektrum brushless system for added punch, more dirt protection, and two fresh body color choices.

Overview

Specifications

Media Gallery

Support

Manuals

Parts Explosions

Supporting Products

Optional Parts

Pit/Field Tools

Replacement Parts

Completion Guides

3S Completion Guide

4S Completion Guide

Overview

Back to Top ^

Key improvements:

Metal center differential for improved traction

Updated chassis with center diff module, hinge pin bracing, and dirt drain

Outdrive protectors, taller side guards, and wishbone dirt guards

Higher torque Spektrum S662 metal-geared digital servo with alloy case center

Cooler running Spektrum Firma 120A V2 Smart ESC

Improved battery retention system with wire clips

Additional proven features:

Fully assembled, finished, and ready-to-run

Spektrum SLT3 2.4GHz transmitter and dual protocol SR315 receiver

Spektrum Firma 3668 2400Kv brushless motor with ARRMA heatsink and cooling fan

EXB all-metal gear diffs

EXB CVD front and rear driveshafts

Wide 17.72 inch front and rear track for aggressive bashing

Long 20.28 inch chassis for stability and control

Shorter 12.32 inch wheelbase for stunt capabilities

Rubber shielded bearings throughout

Center support brace for maximum durability

Double wishbone front and rear suspension

Oil-filled aluminum shocks with silicone O-rings

High shock towers for longer travel

Steering system with stone clearance

Tough black multi-spoke wheels

CNC machined, red anodized 17mm wheel hubs

Vented multi-terrain dBoots BACK-FLIP LP low-profile tires

Adjustable turnbuckles

Adjustable ride height

Adjustable body mounts

Front bumper and protective lower front and rear skid plates

Wheelie bar with rubber tires

2-Year limited warranty (see website for details)

Overview

Loaded with legendary ARRMA toughness and speed, the 1/10 scale OUTCAST 4S BLX Stunt Truck is capable of more than simple off-road bashing. Its short 12.32 inch wheelbase allows flips and makes it easy to maneuver nimbly through obstacles and terrain.

Built on the latest evolution of the 4S BLX platform — the affordable middle ground between agile 3S BLX vehicles and bigger, more powerful 6S BLX machines — this version of the OUTCAST is ready for amped-up, all-road blasting and stunting! It turns up the dial on the stunt truck’s capabilities so anyone can experience next-level ARRMA handling, performance, and speed.

The updates drivers have wanted most are included, starting with a strengthened, diff compatible chassis. The ARRMA OUTCAST 4S BLX now has a center diff module that holds an aluminum-cased center differential. Whatever the surface conditions are, the center diff helps you grab the ultimate traction. And with wishbone dirt guards, outdrive protectors, and taller side guards providing added defense against dirt and debris, the OUTCAST 4S BLX stands up to furious blasting and stunting over off-road or paved surfaces with equal ease.

ARRMA has also amped up the OUTCAST stunt truck’s 4S-capable Spektrum brushless power system for more intense all-road action. A cool-running Spektrum Firma 120A Smart V2 waterproof ESC with IC5 connectors (EC5 compatible) adds punch and improves the driving feel. Steering has been strengthened with a Spektrum S662 metal-geared digital servo that includes an alloy center case. Its higher torque sharpens the truck’s maneuvering capabilities at high speeds.

These updates join a large number of proven ARRMA 4S BLX features — from high shock towers, long oil-filled shocks, and wide arms for plush suspension travel, to steel diff gears and EXtreme Bash CVD front and rear driveshafts for unstoppable power delivery. The OUTCAST 4S BLX also incorporates the popular ARRMA easy-access modular design to make routine maintenance fast and simple.

Made of high-quality rubber, the vented dBoots BACK-FLIP LP tires have an aggressive tread pattern that finds a solid grip on a wide range of surfaces. The vintage truck body has a tough, injection-molded rear wing and comes factory-finished in your choice of two fresh color schemes. Front and rear bumpers protect against impacts and a wheelie bar with rubber tires provides stunt potential.

Everything in the durable design contributes to confident control and responsive handling for whatever eye-popping stunts you can imagine. Fully ready-to-run, the ARRMA OUTCAST 4S BLX Stunt Truck comes with a 3-channel Spektrum SLT3 2.4GHz radio and dual protocol SR315 receiver. Just charge up and pop in your choice of recommended battery and you’re ready to start showing off powerful new stunts!

HEADER_IMAGE

METAL CENTER DIFFERENTIAL

METAL CENTER DIFFERENTIAL

All-metal EXB gear diffs give the OUTCAST 4S BLX Stunt Truck EXtreme Bash durability. An aluminum-cased center differential has also been added that provides the ultimate traction in any surface conditions.

MODULAR CHASSIS DESIGN

MODULAR CHASSIS DESIGN

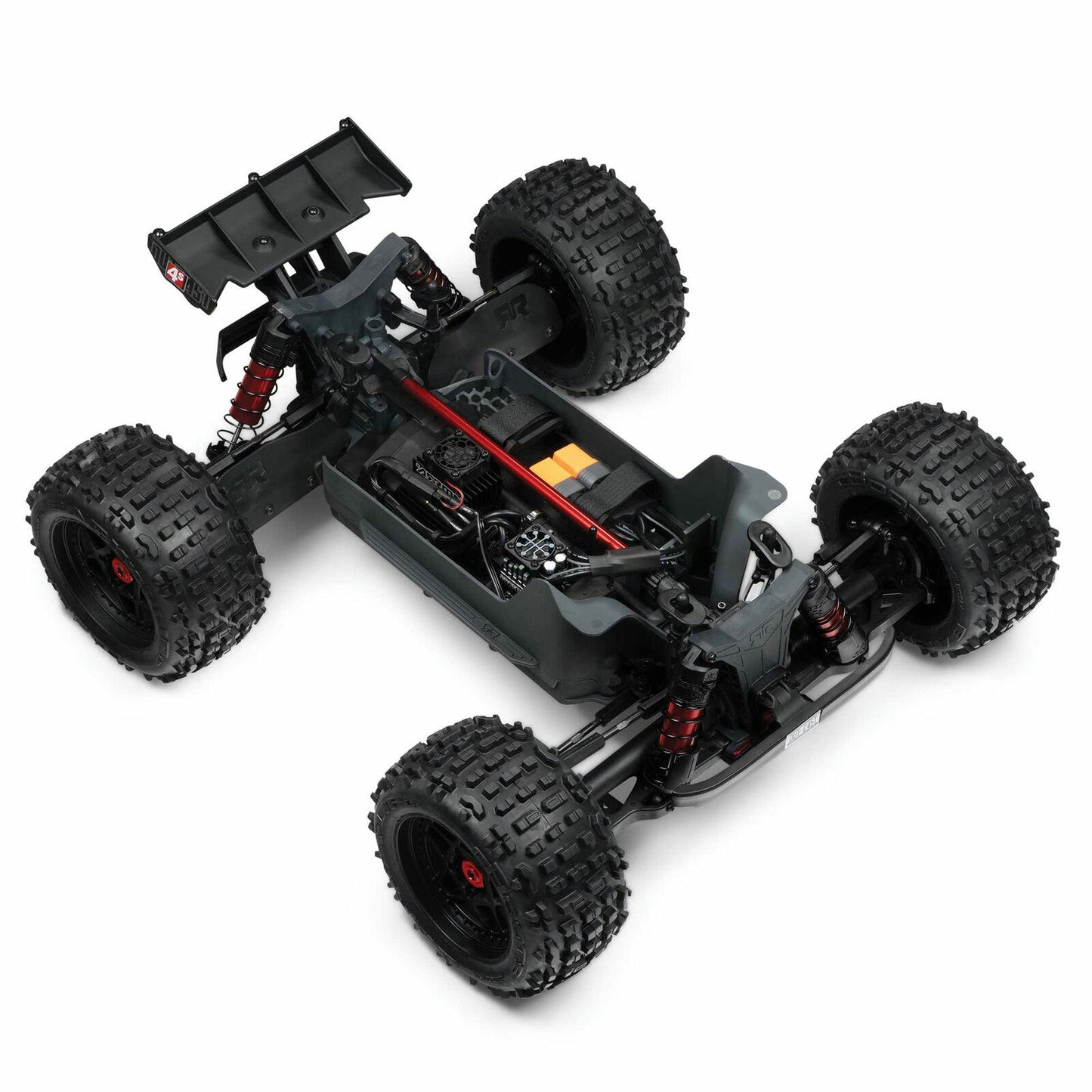

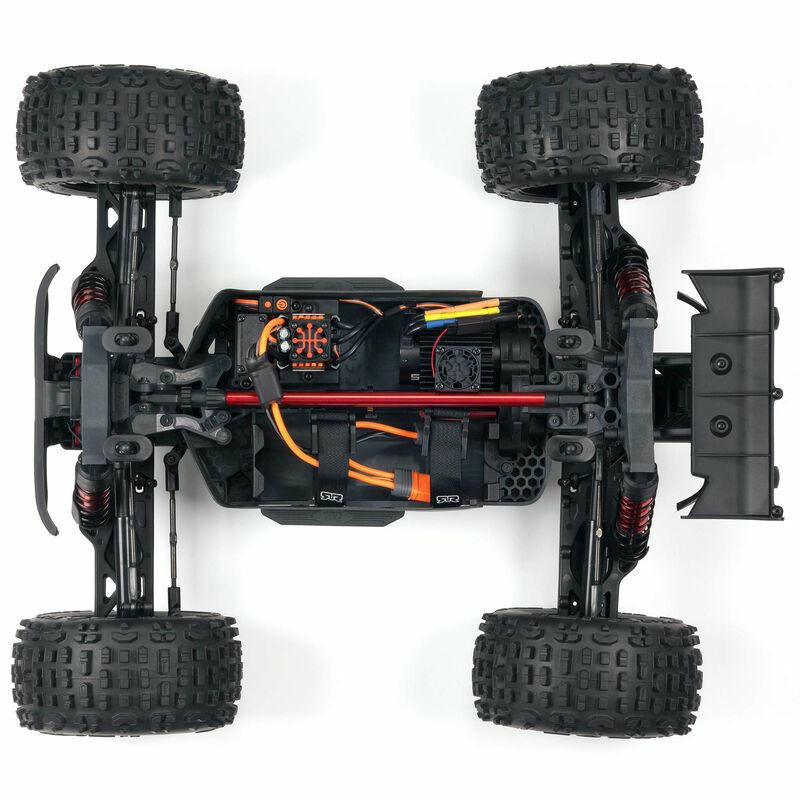

Separate, easily removable chassis modules for the power system, electronics and differential components make routine maintenance fast and simple. The OUTCAST 4S BLX chassis has been updated to accept a center diff module, and also now includes hinge pin bracing and a dirt drain.

OIL-FILLED SHOCKS

OIL-FILLED SHOCKS

Long, aluminum-bodied, oil-filled shocks with silicone O-rings are mounted on high shock towers. These plus wide suspension arms give the OUTCAST 4S BLX the plush suspension travel needed to soak up bumps.

INCREASED DIRT PROTECTION

INCREASED DIRT PROTECTION

With dirt guards for the wishbones, outdrive protectors, and taller side guards all added for extra protection against the elements, the OUTCAST 4S BLX is better prepared than ever for high-speed, all-road blasting.

FINISHED TRUCK BODY

FINISHED TRUCK BODY

The sleek truck body features a tough, injection-molded rear wing and comes factory-finished in your choice of two exciting color schemes. Front and rear bumpers protect against impacts and a wheelie bar with rubber tires provides stunt potential.

dBOOTS BACK-FLIP LP TIRES

dBOOTS BACK-FLIP LP TIRES

The durable, low-profile dBoots BACK-FLIP LP tires with medium-compound foam inserts offer long-lasting performance and feature an aggressive tread pattern for excellent traction on a wide range of surfaces. The tires are mounted on tough, 3.8” MT wheels with CNC-machined, red anodized 17mm hubs.

SPEKTRUM S662 STEERING SERVO

SPEKTRUM S662 STEERING SERVO

The installed Spektrum S662 digital, waterproof steering servo easily handles the demands of high-speed, all-road blasting with full metal gears and high torque (236 oz-in @ 7.4V). It also features an industry-standard 25T spline servo horn.

SPEKTRUM BRUSHLESS POWER SYSTEM

SPEKTRUM BRUSHLESS POWER SYSTEM

The brushless power system includes an efficient Spektrum Firma 2400Kv brushless motor matched to an updated, cool-running Spektrum Firma 120A Smart V2 waterproof ESC with IC5 connectors (also compatible with EC5 connectors).

SPEKTRUM SLT3 2.4GHz 3-CHANNEL TRANSMITTER

SPEKTRUM SLT3 2.4GHz 3-CHANNEL TRANSMITTER

The included Spektrum SLT3 transmitter is ergonomically designed for fatigue-free bashing and has a foam wheel for precise fingertip control. Using the throttle limiting function, new RC drivers can limit top speed to 50% or 75% of the monster truck’s full potential until they’re ready to unleash it all.

SPEKTRUM SR315 3-CHANNEL DUAL PROTOCOL RECEIVER

SPEKTRUM SR315 3-CHANNEL DUAL PROTOCOL RECEIVER

Compatible with SLT and DSMR protocols, the included Spektrum SR315 3-channel receiver offers outstanding range and fast response rate. It’s also Smart telemetry compatible (in DSMR mode and using the Spektrum Dashboard app).

Specifications

Approximate Assembly Time No assembly required

Ball Bearings Full Set, Rubber Shielded

Battery Sold Separately

Body Painted, decalled and trimmed

Brakes Integral with ESC

Bushing Material Metal

Charger Sold Separately

Chassis Molded composite

Completion Level Ready-To-Run

Connector Type IC5, EC5

Differential 2 Gear Diffs

Drive Type Forward/Brake/Reverse

Drivetrain 4WD

Final Drive Ratio 12.48

Front Track 17.72 in (450 mm)

Gear Pitch 0.8 MOD

Internal Gear Ratio 2.85

Max Battery Dimensions 6.14x2.01x1.89 in (156x51x48 mm)

Motor Size 3668-2400Kv

Motor Type Brushless

Pinion 13T

Power System 4S

Power Type Electric

Product Height 8.86 (225 mm)

Product Length 20.28 (515 mm)

Product Weight 9.17lbs (4.17kg)

Product Width 17.72 (450 mm)

Radio Included

Rear Track 17.72 (450mm)

Receiver Included

Scale 1/10

Sensored No

Servos Included

Shock Type Aluminum body, oil-filled, coil-over springs

Speed Control Included

Spur Gear 57T

Steering Type 2WS

Suspension Independent

Technology  Smart, Dual Protocol RX (DSMR/SLT)

Tire Tread dBoots

Top Speed 55+

Vehicle Type Stunt Truck

Water-Resistant Yes

Wheel Hex Size 17mm

Wheelbase 12.32 (313 mm)
