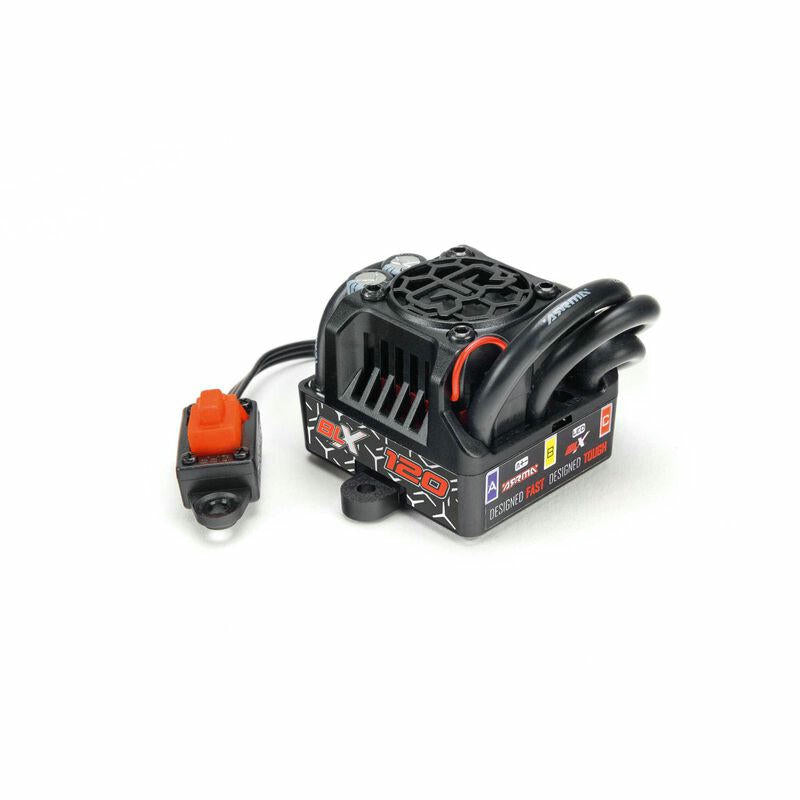

Arrma BLX120 4S Brushless Motor Electronic Speed Controller ESC ARA390264 EC5

Arrma BLX120 4S Brushless Motor Electronic Speed Controller ESC ARA390264 EC5

Regular price $126.99 USD
Regular price Sale price $126.99 USD
Sale Sold out

Arrma
BLX120 4S LiPo
Brushless Motor Electronic Speed Controller
(EC5 Connector)

*NEW*

ARA390264

This is an Arrma ARA390021 BLX120 4S Waterproof brushless motor electronic speed controller for 1/8th scale vehicles.  (EC5 Battery connector)

The BLX120 120A waterproof ESC provides consistent power control and is 4S LiPo ready.



FEATURES:

Fitted with super-reliable EC5 connectors and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX120 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.



The fitted 12AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.



SPECIFICATION



Battery usage    3S LiPo (11.1V) or 4S LiPo (14.8V)

Low Voltage Cut-Off (LVC)           3.4V per cell

Thermal Protection Temperature             125°C / 257°F

Over-Voltage Protection               Over 17.2V

BEC Voltage        6V

BEC Current        3A

ESC Length          43mm / 1.69

ESC Height          34mm / 1.34

ESC Width           54.5mm / 2.15 (Including hold-down tabs)

ESC Weight         150g / 5.3 oz

Receiver Wire Length     170mm / 6.70

Battery Wire Length

225mm / 8.86



Motor Wire Length (Including Connector)             200mm / 7.87

Switch Length    21mm / 0.83

Switch Width     13.3mm / 0.52

Switch Height    16mm / 0.63

Motor Bullet Connector Size       4mm / 0.16

Wire Specifications          12AWG

ESC Battery Connector Type        2xEC5

INCLUDES:

1 x BLX120 Brushless 4S ESC



1 x Loop Connector
