Arrma BLX185 6S Brushless Motor Electronic Speed Controller ESC ARA390211IC IC5

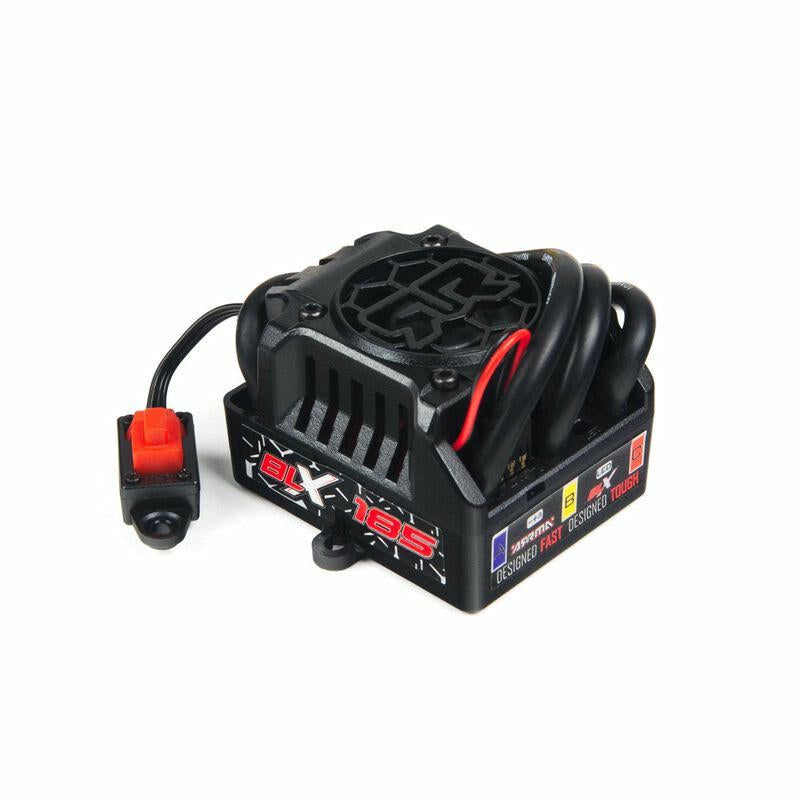

This is an Arrma ARA390021 BLX185 6S Waterproof brushless motor electronic speed controller for 1/8^th scale vehicles.  (IC5 Battery connector)

For use in 1/8 scale vehicles – Waterproof Brushless Extreme Performance - Your quest to unleash rapid 1/8 scale speed and rugged waterproof all-terrain performance starts here. Perfect for high-power applications that require awesome 6S LiPo voltage, the BLX185 power system is the key to launching beyond 60mph, with optional gearing added. Specially designed to provide even more brushless muscle, straight from the box.

Integrated cooling fan for reduced heat during extreme running

IC5 battery connectors for added fitting security and increased power transfer reliability

Gold bullet motor cable connectors for consistent power connection and easy motor installation

Waterproof ESC and power switch for rugged reliability in all-conditions\

Waterproof switch with single button programming

Premium 10AWG wires throughout for increased efficiency

Supplied with bridge connector for easy running of single 4S or single 6S battery cells

BLX185 SPECIFICATIONS

POWER TYPE      BLX Brushless Extreme Performance

ESC TYPE              150AMP Continuous current capacity

BATTERY USAGE               3S LiPo (11.1), 4S LiPo (14.8) or 6S LiPo (22.2V) Stick Pack

LOW VOLTAGE CUT-OFF (LVC)    3.2V per cell

THERMAL PROTECTION TEMPERATURE  105°C / 221°F

OVER-VOLTAGE PROTECTION     Over 6S LiPo (25.2V)

BEC VOLTAGE    6V

BEC CURRENT    3A

ESC LENGTH       57.5mm / 2.26

ESC HEIGHT        38.9mm / 1.53

ESC WIDTH          59.5mm / 2.34 (Including hold-down tabs)

ESC WEIGHT       196g / 6.91oz

RECEIVER WIRE LENGTH 200mm / 7.87

BATTERY WIRE LENGTH 165mm / 6.5

MOTOR WIRE LENGTH (INCLUDING CONNECTOR)             130mm / 5.12
